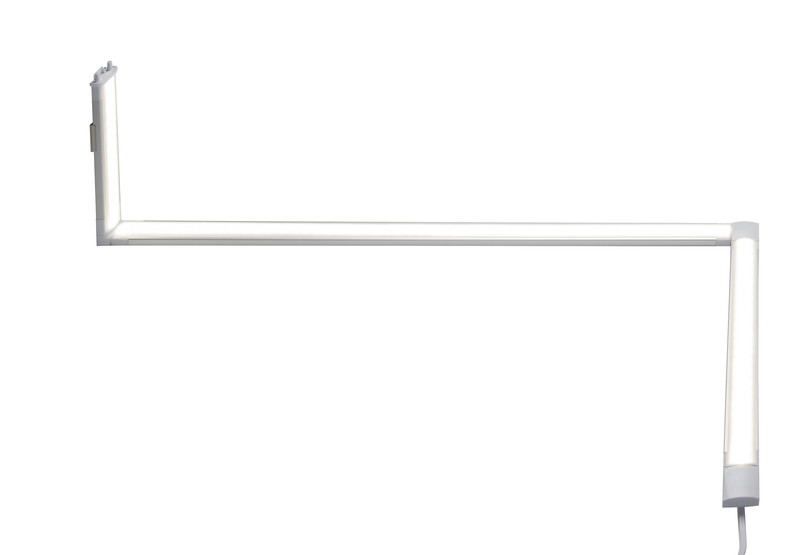

LED-LIGHT RAIL LINEAR 1000 IP21 15W/1400LM/M 840 PCO
Product code
4146625
No product description available.
Product details
Technical specifications
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter96
Lamp power per meter15 W
Luminous flux per meter1400 lm
Voltage typeDC
Lamp voltage24 ... 24 V
Beam angle100 °
Type of control gearLED operating device voltage-controlled
Exchangeable control geartrue
Energy efficiency class of the light source according to EU regulation 2019/2015G
Rated life time L70/B50 at 25 °C40000 h
Degree of protection (IP)IP21
Protection classIII
Max. system power15 W
Product codes
SAPDAA356
PLC4146625
STK4146625
GTIN/EAN6435200286284
Manufacturer part numberA1ANAE
Vendor material number4146625
Basic information

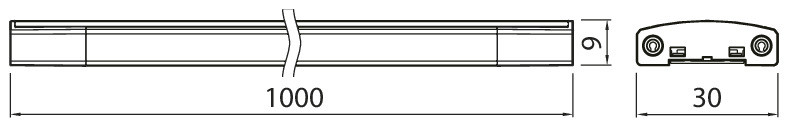

Package measurements (L x W x H)27 x 52 x 1125 mm
Package volume1.58 l
Package weight0.46 kg
Base uniteach
Package units1 / 4 / 40 / 240
Package contents–
UNSPSC39111544
BrandAIRAM
VendorAIRAM ELECTRIC OY AB
