LED STRIP APUS 24V 24V IP20 600LM/M 930 5M
Product code
4147010
Apus 24V is a high-quality and energy-efficient LED strip with excellent color rendering. The Apus strip creates a uniform line of light and offers numerous options for indirect lighting implementations. The long 15 m model enables seamless installation suitable for hallways and other applications requiring extended runs, especially in public spaces. Applications include kitchens, residential areas, hotels, and restaurants. The range offers four different power levels in two color temperatures. By selecting the appropriate power supply, you can dim the LED strip in your preferred manner. Also available with Casambi control, cut to length, and optionally mounted in a profile—customization is smoothly carried out at our factory in Lahti. Accessories are available to facilitate easy connections between strips. Each end of the strip features a feed cable, allowing you to cut the strip into two ready-to-install LED strips. The 3 m feed cable length also enables discreet placement of the power supply.

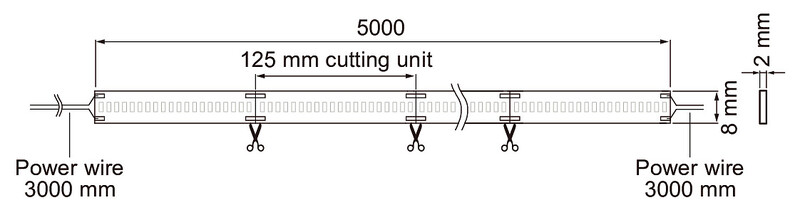

• LED strip 24V, cuttable every 125 mm, 62.5 mm, or 50 mm depending on power level
• Protection class III
• Lengths: 5 m / 15 m
• 3 m feed cable at both ends
• Mountable in aluminum profile
• Color temperatures: 3000 K and 4000 K. CRI > 90 / Ra > 90
• MacAdam 3 SDCM
• IP20
• 5 m models: 600 lm/m 4.8 W/m, 1200 lm/m 9.6 W/m, 1700 lm/m 14.4 W/m. 15 m model: 900 lm/m 9.6 W/m
• On/off, Push dim, DALI
• Operating temperature: 0 … 25 °C
• Accessories: 4147018 Apus 24V IP20 Connector 10 mm 3 m 5 pcs
• Useful life L70 50,000 h (Ta25°C)
Also available project-specific with Casambi control, cut to length, and optionally mounted in a profile. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter64
Number of nodes per foot20
Lamp power per meter4.8 W
Lamp power per foot1.5 W
Luminous flux per meter560 lm
Luminaire efficacy117 lm/W
Voltage typeDC
Type of power supplyMains power supply
Lamp voltage24 - 24 V

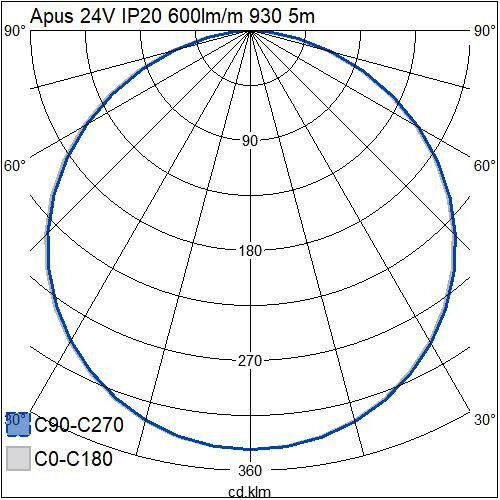

Beam angle120 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Product codes
SAPDMA891
STK4147010
PLC4147010
GTIN/EAN6435200315830
Manufacturer part numberA1APUA
Vendor material number4147010
Basic information
Package measurements (L x W x H)215 x 245 x 12 mm
Package volume0.632 l
Package weight0.17 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC39111544
BrandAIRAM
VendorAIRAM ELECTRIC OY AB
Documents (9)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.21
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
