LED STRIP APUS CSP 24V 24V IP20 1000LM/M 930 5M

Product code
4146920

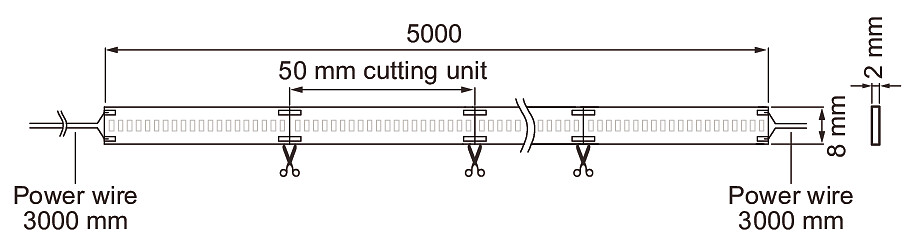

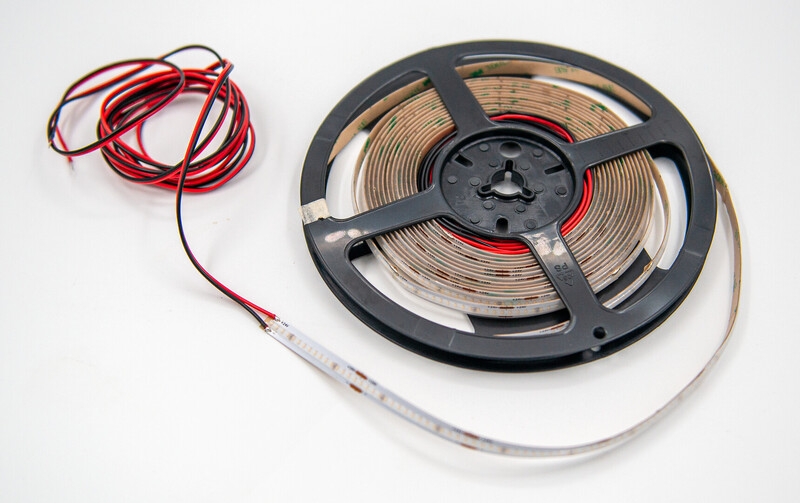

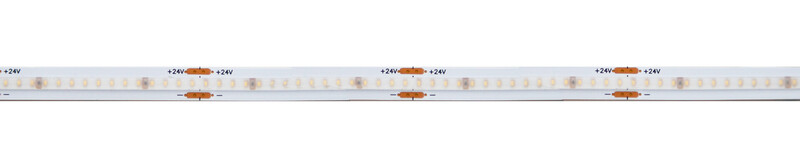

High-quality Apus CSP LED strip is an excellent lighting solution for spaces requiring uniform and indirect lighting. CSP LEDs do not produce point light but instead deliver a completely even, clean, and continuous light line. Thanks to the uniform light output, the LED strip is also suitable for applications where the strip and profile are directly visible. The series offers excellent color rendering and three options for color temperature. The strip is mounted into an aluminum profile. Optional dimming unit available with either push-dim or DALI control. Also available on request with Casambi control, cut to length, and optionally pre-installed in the profile. Additional accessories are available to enable easy connections between strips. - LED strip 24V, cuttable every 50 mm - Protection class III - Length 5 m - 3 m supply cable at both ends - Mounted into aluminum profile - Color temperatures 2700 K, 3000 K, and 4000 K. CRI > 90 / Ra > 90 - MacAdam 3 SDCM - IP20 - 10 W/m 1000 lm/m and 14.4 W/m 1300 lm/m - Operating temperature range 0 … 25 °C - Useful life L70 50,000 h (Ta 25°C) This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter320
Number of nodes per foot98
Lamp power per meter10 W
Lamp power per foot3.05 W
Luminous flux per meter1000 lm
Luminaire efficacy100 lm/W
Voltage typeDC
Type of power supplyMains power supply
Lamp voltage24-24 V
Beam angle150 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno

Product codes

SAPDBX507
STK4146920
PLC4146920
GTIN/EAN6435200304469
Manufacturer part numberA1COBD
Vendor material number4146920

Basic information

Package measurements (L x W x H)220 x 10 x 190 mm
Package volume0.418 l
Package weight0.17 kg
Base uniteach
Package units1 / 25 / 100
Package contents
UNSPSC39111544
BrandAIRAM
VendorAIRAM ELECTRIC OY AB

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)2.21
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameAiram Electric Oy Ab
Postal addressSementtitehtaankatu 6, 04260 Kerava
