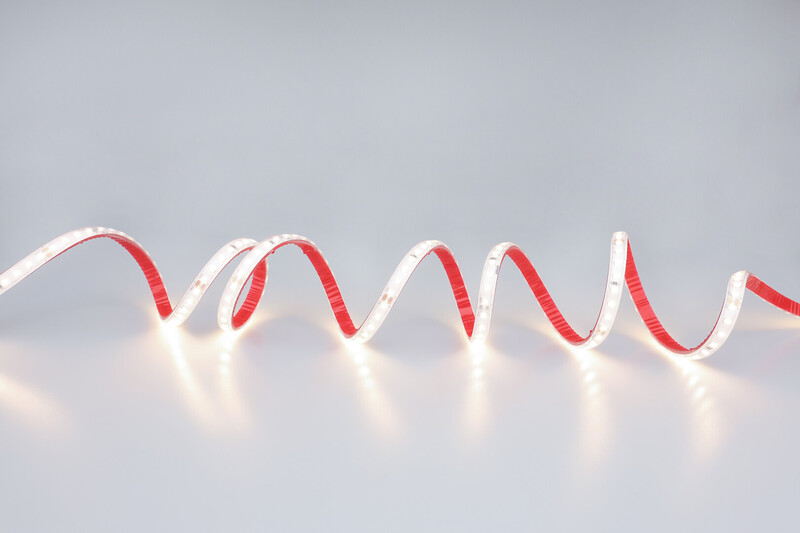

LED STRIP NORMA 24V 24V IP66 1100LM/M 940 5M

Product code
4147020

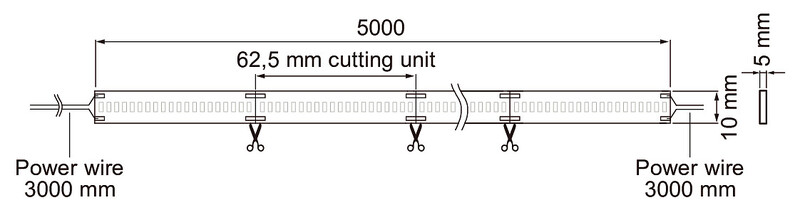

Norma 24V is a high-quality and energy-efficient LED strip for humid areas with excellent color rendering. With the Norma strip, you can create a continuous line of light and indirect lighting in numerous different spaces. Applications include bathrooms and other damp areas as well as terraces and balconies. Two color temperatures are available. By selecting the appropriate power supply, you can choose either push dimming or DALI control. Also available with Casambi control, cut to length, and optionally mounted in a profile—customization is smoothly carried out at our factory in Lahti. A range of accessories is available to make easy connections between strips. • LED strip 24V, cuttable every 62.5 mm • Protection class III • Length 5 m • 3 m supply cable at both ends • Two end plugs included in the package. End plugs must be secured with silicone-compatible adhesive or sealant, e.g., All-weather roof sealant (for outdoor use) • Mounted in an aluminum profile • Color temperatures 3000 K and 4000 K. CRI > 90 / Ra > 90 • MacAdam 3 SDCM • IP66 • 1100 lm/m, 9.6 W/m • On/off, Push dim, DALI • Accessories: 4147021 Norma 24V Accessory Pack • Operating temperature range -25 … 25 °C • Useful life L70 50,000 h (Ta25°C) Also available project-specific with Casambi control, cut to length, and optionally mounted in a profile. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter128
Number of nodes per foot39
Lamp power per meter9.6 W
Lamp power per foot2.9 W
Luminous flux per meter1200 lm
Luminaire efficacy125 lm/W
Voltage typeDC
Type of power supplyMains power supply
Lamp voltage24 - 24 V

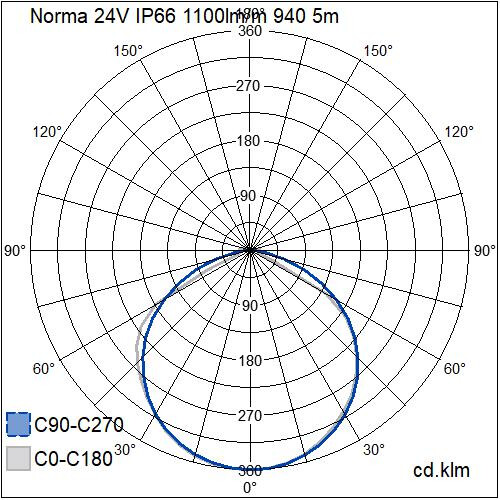

Beam angle120 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno

Product codes

SAPDMA896
STK4147020
PLC4147020
GTIN/EAN6435200315939
Manufacturer part numberA1NORB
Vendor material number4147020

Basic information

Package measurements (L x W x H)340 x 340 x 20 mm
Package volume2.312 l
Package weight0.52 kg
Base uniteach
Package units1 / 20
Package contents
UNSPSC39111544
BrandAIRAM
VendorAIRAM ELECTRIC OY AB

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)6.76
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameAiram Electric Oy Ab
Postal addressSementtitehtaankatu 6, 04260 Kerava
