LED STRIP NORMA CSP 24V 24V IP68 1400LM/M 930 5M
Product code
4146926
High-quality Norma CSP LED strip is an excellent lighting solution for spaces requiring uniform and indirect lighting. CSP LEDs produce no point light but instead deliver a completely even, clean, and continuous line of light. Thanks to the uniform light output, the LED strip is also suitable for applications where the strip and profile are directly visible. The Norma strip has an IP68 rating, making it suitable for installation in damp environments. The series offers excellent color rendering and three options for color temperature. The strip is mounted into an aluminum profile. Optional dimming unit available with either push-dim or DALI control. Also available on order with Casambi control, cut to length, and optionally pre-installed in the profile. Additional accessories are available to enable easy connections between strips.

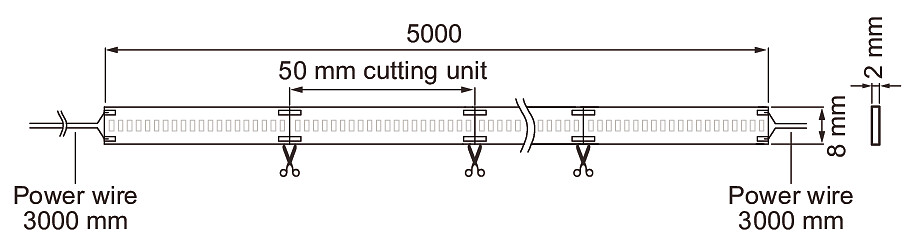

- LED strip 24V, cuttable every 50 mm
- Protection class III
- Length 5 m. 3 m supply cable at both ends
- Mounted into aluminum profile
- Color temperatures 2700 K, 3000 K, and 4000 K. CRI > 90 / Ra > 90
- MacAdam 3 SDCM
- IP68
- 14.4 W / 1400 lm/m
- Operating temperature range -30 … 25 °C
- Useful life L70 50,000 h (Ta 25°C) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter480
Number of nodes per foot146
Lamp power per meter14.4 W
Lamp power per foot4.39 W
Luminous flux per meter1400 lm
Luminaire efficacy100 lm/W
Voltage typeDC
Type of power supplyMains power supply
Lamp voltage24-24 V
Beam angle150 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Product codes
SAPDBX502
STK4146926
PLC4146926
GTIN/EAN6435200304520
Manufacturer part numberA1COBJ
Vendor material number4146926
Basic information
Package measurements (L x W x H)260 x 12 x 250 mm
Package volume0.78 l
Package weight0.64 kg
Base uniteach
Package units1 / 25 / 50
Package contents–
UNSPSC39111605
BrandAIRAM
VendorAIRAM ELECTRIC OY AB
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)8.32
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
