MODULAR LUMINAIRE MODULE 600X600 IP54 32W/830 PSMP WH

Module

Modular light fitting suitable for suspended ceilings in offices and public spaces. Two different body sizes. IP54 protection rating on the underside of the luminaire. Options include opal dome or microprism dome suitable for task lighting with UGR>19. Excellent efficiency makes this luminaire an extremely energy- and cost-effective solution. Recessed installation into T-grid ceiling.

• Body made of steel, dome made of opal or microprism polystyrene. (PSO or PSMP)
• White RAL9016
• Recessed installation.
• Chainable with 3/5 x 2.5 mm2 cables.
• Installation height 2–4 m.
• Fixed LED 23–32 W / 2900–4200 lm.
• Color temperature 3000K and 4000K. CRI > 80 / Ra > 80.
• MacAdam 3 SDCM.
• IP20/IP54.
• Protection class I.
• Standard range includes On/Off and Dali-2 models.
• Operating ambient temperature 0 … 25 °C.
• Useful lifetime L70 100 000 h (Ta25°C).
• Useful lifetime L80 65 000 h (Ta25°C).
• Driver lifetime 100 000 h
• WH = white, DA2 = Dali-2, PS=Polystyrene O=Opal MP=Microprism

Optional accessories:

• General recess mounting frame 600x600 (4297811)
• General recess mounting frame 1200x300 (4297812)
• Surface mounting frame 600x600/143mm (4245223)

Project-specific availability:
Available with Casambi-, 1-10V-, and Switch Dim solutions.
CRI > 90.
Also available with various connection cable solutions.
Tunable White, 2700K, 5700K and 6500K
Safety light versions

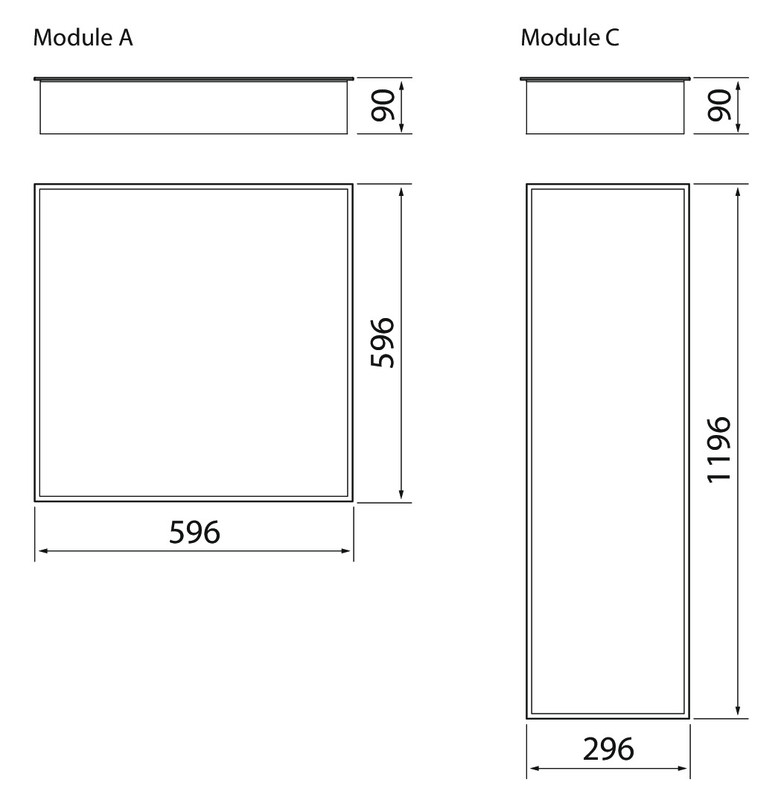

600x300mm models

This product description is an automated translation of the original Finnish description.
