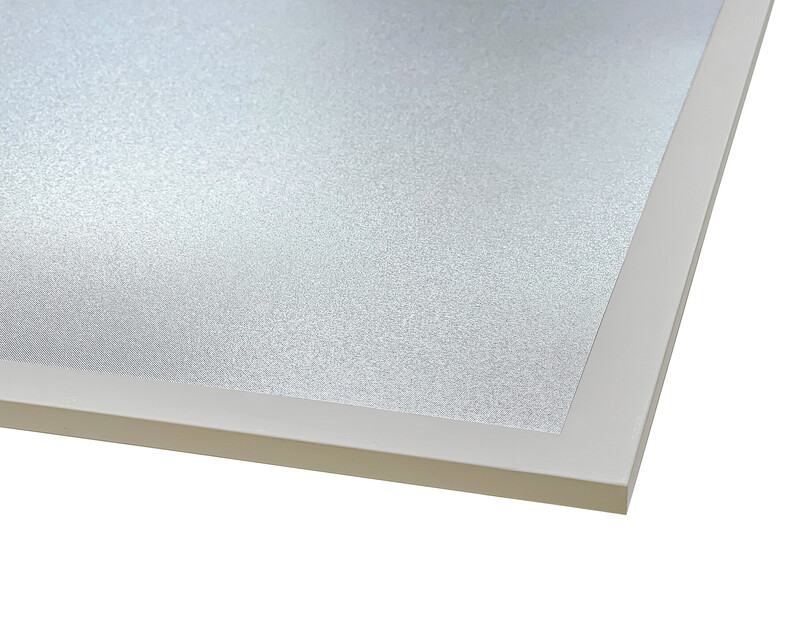

MODULAR LUMINAIRE PLANO PRO IP44 27W/930 PSMP DA2 WH

Plano Pro

Plano Pro is a next-generation energy-efficient and highly versatile modular luminaire with nearly limitless applications. Its excellent color rendering index, UGR value (< 19), and IP44 rating make Plano Pro a reliable choice for almost any application. Thanks to its energy efficiency, Plano Pro is ideally suited for public spaces such as corridors, lobbies, and open-plan offices. The low UGR value enables its use in schools, daycare centers, and focused work environments. Thanks to its IP44 rating, the luminaire can also be installed in dusty and humid areas. A variety of mounting accessories are available, including round aperture covers and fittings for surface and recessed mounting. A Tunable White version is also available.

• Frame: aluminum, body: steel, reflector: polystyrene, lenses: acrylic.
• White, RAL 9016.
• Luminaire protection class III.
• Connection device protection class II.
• Mounting to T-grid ceiling, with additional accessories for surface and recessed mounting.
• Compatible for daisy-chaining: on/off and Dali-2 max. 5 x 2.5 mm², Casambi and ActiveAhead 3 x 2.5 mm², Dim 3 x 1.5 mm².
• Color temperatures: 3000 K, 4000 K, and Tunable White 2700–6000 K. CRI > 90 / Ra > 90.
• MacAdam 3 SDCM.
• IP44. ActiveAhead models IP20.
• IK02.
• On/off: 27 W 3500 lm / 35 W 4500 lm.
• Dim: 31 W 4000 lm.
• Dali-2, Casambi and ActiveAhead: 27 W 3500 lm / 35 W 4500 lm / 45 W 5800 lm.
• Dali DT8 35 W 4300 lm.
• Casambi TW 35 W 4300 lm.
• On/off, Dim (falling edge dimming), Dali-2 with direct push-button control (230 V) and CLO functions, Casambi (Bluetooth mesh), ActiveAhead (self-learning wireless lighting control solution), and TW with either Dali DT8 or Casambi control.
• It is recommended to use Dali-2 certified control gear.
• Maximum number of luminaires per group in direct push-button control: 60 units. Maximum cable length between switch and luminaire: 10 meters.
• Operating ambient temperature: 0 … 25 °C.
• Useful life L70B50: 100,000 h (Ta25°C).
• Useful life L80B10: 80,000 h (Ta25°C).
• Useful life L90B10: 50,000 h (Ta25°C).
• Power supply lifespan: 100,000 h.

Optional accessories: white surface mounting frame (4245223), universal recessed mounting frame 600 x 600 (4297811), and mounting kit for suspended ceiling (4146933). Additionally available: round aperture covers R400 (A2PLZC) and R500 (A2PLZA). WH = white, DA2 = Dali-2, CA = Casambi, AA = ActiveAhead, PSMP = polystyrene micro-prism, DIM = phase-cut dimming, TW = Tunable White.

Project-specific custom-length connection cables and versatile quick-connect cable kits available. This product description is an automated translation of the original Finnish description.
