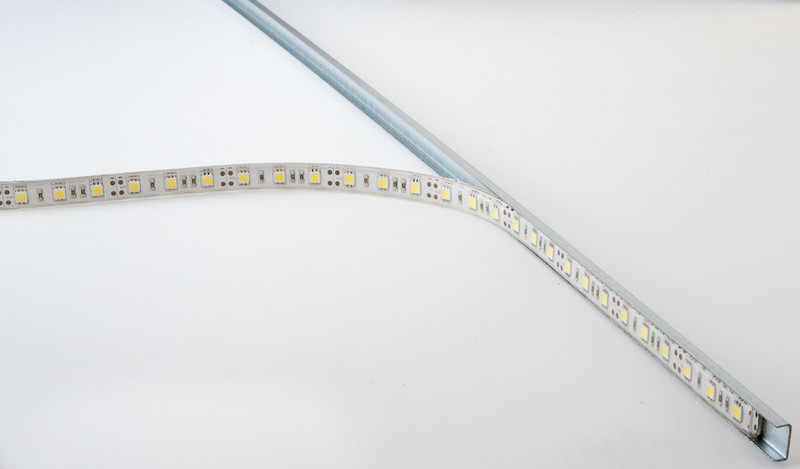

NORMA 12V IP65 12V 9W/M 840 5M
Product code
4209551
Norma 12V
The moisture-protected and compact Norma LED strip is an excellent solution for indirect lighting of building facades and damp areas. Applications include office buildings, residential properties, hotels, and building exteriors. The Norma strip creates a uniform line of light. Available with a separate dimming unit offering either push-button (Push dim) or DALI control. Two color temperatures are available. Also available on order with Casambi control, cut to length, and optionally mounted in a profile.
• UV-protected silicone-coated 12V LED strip. • Protection class III. • Length 5 m. Maximum continuous light line length is 5 m. • 1.5 m connecting cable. • For outdoor use, Norma mounting profiles are recommended. The strip can also be surface-mounted using its own adhesive tape or a separate silicone clip. • Color temperatures 3000 K and 4000 K. • MacAdam 4 SDCM. • IP65. • 45 W / 5 m reel: 9 W, 700 lm/m. • On/Off, Push dim, DALI. • Operating temperature range -20 … 25 °C. • Useful life L70 50,000 h (Ta25°C). • Available project-specifically also with Casambi control, cut to length, and optionally mounted in a profile. This product description is an automated translation of the original Finnish description.
The moisture-protected and compact Norma LED strip is an excellent solution for indirect lighting of building facades and damp areas. Applications include office buildings, residential properties, hotels, and building exteriors. The Norma strip creates a uniform line of light. Available with a separate dimming unit offering either push-button (Push dim) or DALI control. Two color temperatures are available. Also available on order with Casambi control, cut to length, and optionally mounted in a profile.
• UV-protected silicone-coated 12V LED strip. • Protection class III. • Length 5 m. Maximum continuous light line length is 5 m. • 1.5 m connecting cable. • For outdoor use, Norma mounting profiles are recommended. The strip can also be surface-mounted using its own adhesive tape or a separate silicone clip. • Color temperatures 3000 K and 4000 K. • MacAdam 4 SDCM. • IP65. • 45 W / 5 m reel: 9 W, 700 lm/m. • On/Off, Push dim, DALI. • Operating temperature range -20 … 25 °C. • Useful life L70 50,000 h (Ta25°C). • Available project-specifically also with Casambi control, cut to length, and optionally mounted in a profile. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter60
Number of nodes per foot19
Lamp power per meter9 W
Lamp power per foot2.74 W
Luminous flux per meter700 lm
Luminaire efficacy78 lm/W
Voltage typeDC
Type of power supplyMains power supply
Lamp voltage12-12 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Product codes
SAPCFZ178
STK4209551
PLC4209551
GTIN/EAN6435200237972
Manufacturer part numberA2NOCB
Vendor material number4209551
Basic information
Package measurements (L x W x H)250 x 250 x 20 mm
Package volume0.24 l
Package weight0.5 kg
Base uniteach
Package units1 / 20 / 160 / 720
Package contents–
UNSPSC39112102
BrandAIRAM
VendorAIRAM ELECTRIC OY AB
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.5
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
