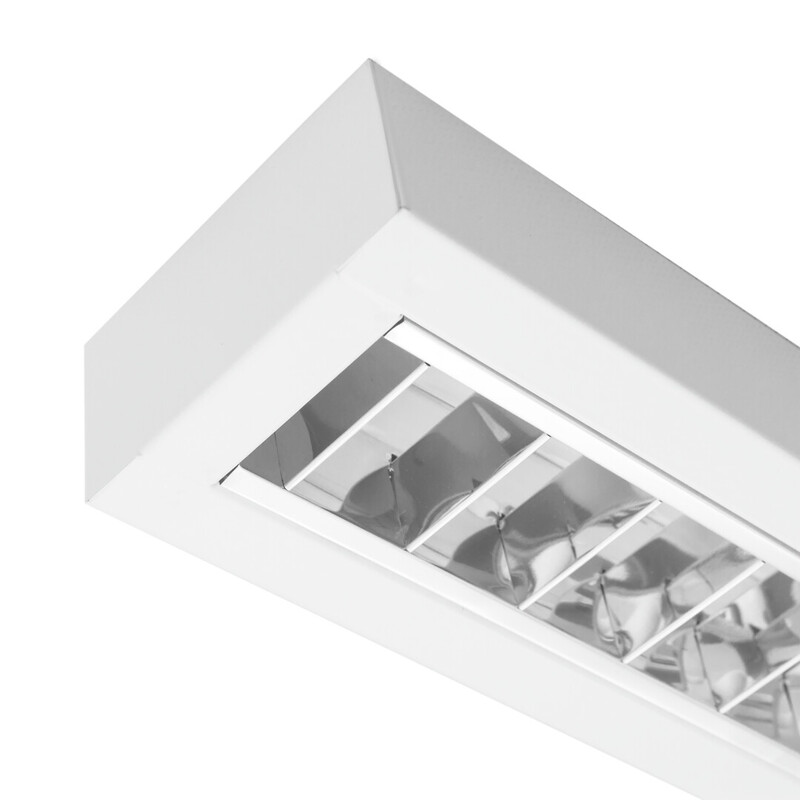

SURFACE MNT./SUSPEN. LUMINAIRE EVAL 35W/840 WH
Product code
4289844
Eval
Eval is a narrow-bodied light equipped with a single glare shield. Available in two different power levels and color temperatures, with DALI control.
Structure: Body made of steel, glare shield made of aluminum.
Color: White (RAL9003), glare shield matte.
Light source: Integrated LED, 33/51W, 830/840.
Operating temperature: -5 to +25 degrees.
Installation: Surface mounting. Additional accessories (4289683) for cable suspension.
Wiring: Can be chained with 3x2.5mm2.
Control: On/Off or DALI (DA). This product description is an automated translation of the original Finnish description.
Eval is a narrow-bodied light equipped with a single glare shield. Available in two different power levels and color temperatures, with DALI control.
Structure: Body made of steel, glare shield made of aluminum.
Color: White (RAL9003), glare shield matte.
Light source: Integrated LED, 33/51W, 830/840.
Operating temperature: -5 to +25 degrees.
Installation: Surface mounting. Additional accessories (4289683) for cable suspension.
Wiring: Can be chained with 3x2.5mm2.
Control: On/Off or DALI (DA). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingyes
With mounting materialyes
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Lamp holderOther
Housing materialSteel
Surface protection housingPowder coating
Product codes
SAPCCA406
STK4289844
PLC4289844
GTIN/EAN6435200211132
Manufacturer part numberD2EVAB
Vendor material number4289844
Basic information
Package measurements (L x W x H)1233 x 108 x 60 mm
Package volume7.99 l
Package weight2.8 kg
Base uniteach
Package units1 / 6 / 78
Package contents–
UNSPSC39111501
BrandAIRAM
VendorAIRAM ELECTRIC OY AB
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)19.74
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
