SURFACE MO. LUMINAIRE LUMINO 300 IP44 16W/840C PCO WH

Lumino

Lumino is a low-profile, highly durable and long-lasting general lighting solution for residential and public buildings. The fixture’s appearance is refined, and it emits uniform, high-quality light. Thanks to its low profile, the luminaire fits elegantly and discreetly into various spaces and interiors. It is suitable for wall and ceiling mounting in stairwells and common areas. Lumino can also be installed outdoors, as it withstands low temperatures. Thanks to its IP44 rating, it can be installed in bathrooms and other humid environments. The luminaire can also be mounted using an optional raised frame accessory with surface wiring. The luminaire offers two color temperatures. You can choose between two sizes, with a sensor version available for each size, and for the 400 model, Dali-2 and Casambi control options are also available. Lumino is designed in Kerava for Finnish conditions.

• Body and lens made of UV-stabilized polycarbonate.
• White, RAL 9003.
• Protection class II.
• Surface mounting on ceiling and wall.
• Wiring: on/off and Casambi 3 x 1.5/2.5 mm². Radar 4 x 1.5/2.5 mm². Dali-2 5 x 1.5/2.5 mm².
• Installation height 1.5–6 m.

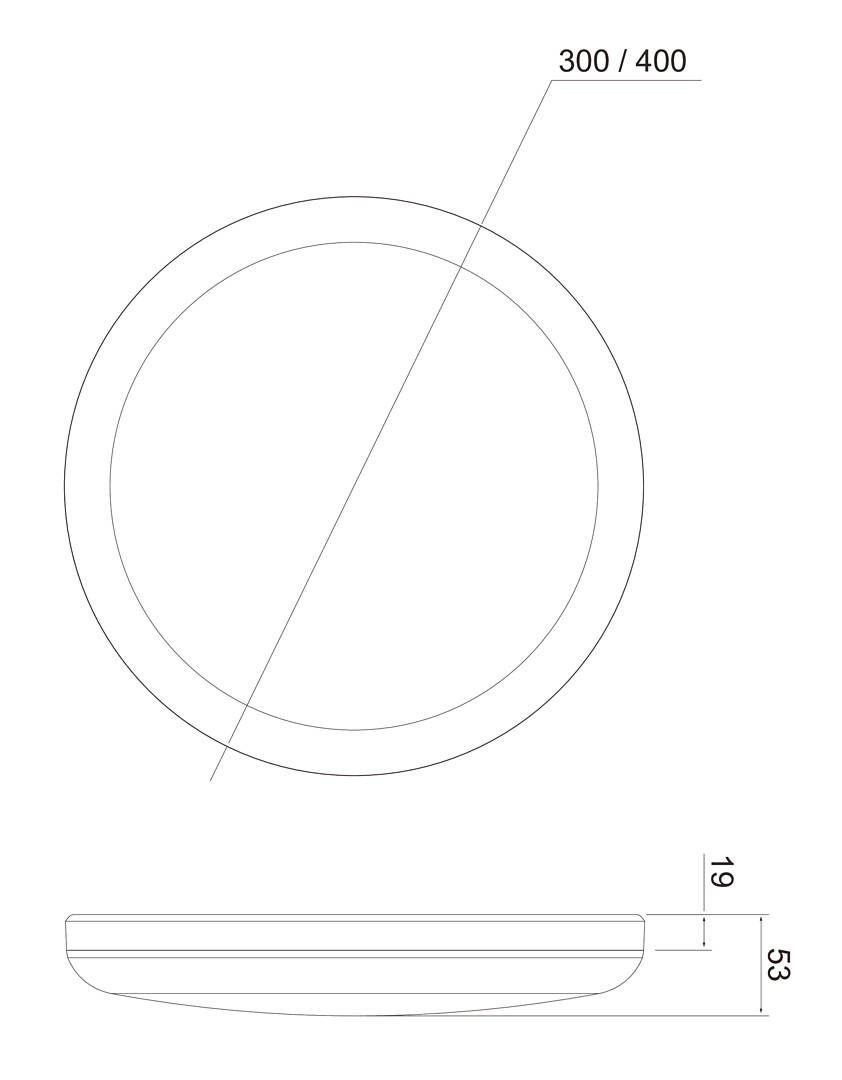

• Two sizes: Ø 300 and 400 mm.
• Color temperature 3000 K/4000 K, selectable from the luminaire. CRI > 80 / Ra > 80.
• MacAdam 3 SDCM.
• IP44.
• IK10.
• Fixed LED.
• 300 model: 12 W 1100 lm / 15 W 1500 lm.
• 400 model: 17 W 1800 lm / 25 W 2500 lm.
• 400 Dali-2 and Casambi models: 22 W 2150 lm.
• Available in on/off and Radar models, and for the 400 model, Dali-2 with direct push-button control (230V) and Casambi control.
• Radar models operate on microwave sensor principle (5.8 GHz) and are suitable for master/slave (M/S) installation, enabling operation of up to 10 slave luminaires.
• Operating temperature range: on/off -30 ... 25 °C and Radar, Dali-2, Casambi -20 ... 25 °C.
• Useful life L70B50 100 000 h (Ta25°C).
• Useful life L80B10 80 000 h (Ta25°C).
• Useful life L90B10 50 000 h (Ta25°C).

This product description is an automated translation of the original Finnish description.
