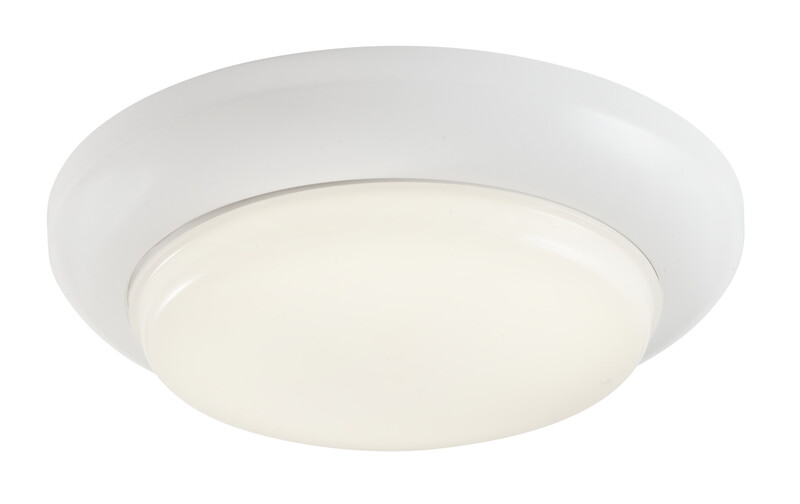

SURFACE MOUNTED LUM. LUMI DUO 320 IP44 17W 830/840 PCO WH

Name: SURFACE MOUNTED LUM. LUMI DUO 320 IP44 17W 830/840 PCO WH
Brand: AIRAM
SKU: CVB636

Product code

4146614

Technical specifications

17W 1500 lm
Ř 320
3000K/4000K, selectable from the luminaire
IP44
IK10
Protection class II
L70B50 50 000h
CRI > 80 / Ra > 80
SDCM3
Operating temperature range: On/Off models -30 … 25 °C
Useful life L70B50 50 000 h (Ta25°C)
Driver useful life 50 000 h
C16 max. 113

Features

Body and lens made of UV-stabilized polycarbonate
White, RAL 9003
Fixed LED, power selectable from the luminaire
Not dimmable

Lumi Duo is a versatile and adaptable general lighting range equipped with selectable color temperature and power. You can choose the right models for your application from a variety of sizes and control options. The Lumi Duo luminaire has excellent cold resistance down to -30 °C. It is suitable for wall and ceiling installations in indoor and outdoor areas such as corridors, stairwells, and damp environments in public and residential buildings. On/Off and Radar models are available in each size. Lumi Duo is available in three sizes:

250 model: 5W 500 lm / 9W 750 lm
320 model: 10W 1000 lm / 17W 1500 lm
400 model: 17W 1700 lm / 28W 2500 lm

Installation Install the impact-resistant luminaire on the ceiling or wall using the provided mounting bracket, either surface-mounted or semi-recessed. Installation is quick thanks to the easily accessible LEDs on the outer edges and simple lens attachment. The luminaire, equipped with spring connectors, can be surface-wired and daisy-chained. Daisy-chaining: On/Off, 3 x 2.5 mm², Radar models 4 x 2.5 mm². Radar models operate on microwave sensor principle (5.8 GHz) and are suitable for master/slave (M/S) installation, enabling the use of up to 10 slave luminaires. Installation height: 1.5–4 m. Optional accessory: white decorative frame. Airam luminaires are widely available in Onninen's online store. Explore other Airam products and the full lighting range in our online store or at our Express store. This product description is an automated translation of the original Finnish description.
