INDOOR UNIT CASSETTE ARGO ASG ECO PLUS 100PH
Product code
K2110317

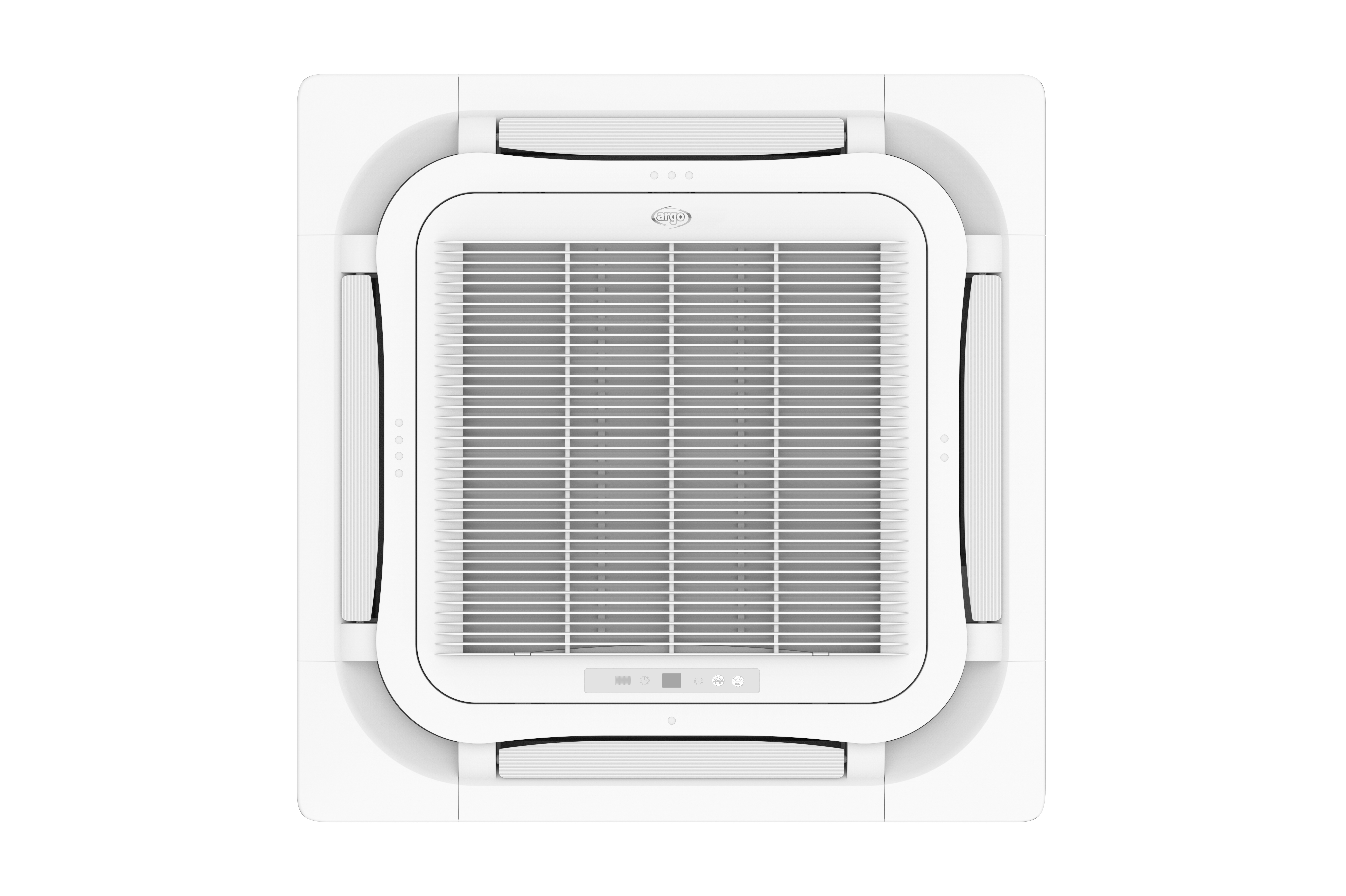

Argo ASG ECO PLUS 100PH compact ceiling cassette indoor unit, 900 x 900 mm size. The ceiling cassette is compatible with the AEG ECO PLUS 100PIH3 split outdoor unit. Also requires a frame kit. The unit delivery includes a wireless remote control.
Features- heating capacity 11.5 kW
- cooling capacity 10.5 kW
- refrigerant lines: liquid 3/8” and gas 5/8”
- optional WiFi with wireless thermostat
- built-in condensate pump with lift height of 1000 mm
- operating range for heating and cooling down to outdoor temperature of -20°C
- 360° air discharge
Product details
Technical specifications
Product class (ETIM)Air-conditioning split system - single-split condensing unit, air-cooled (EC011583)
Operating principleCooling and heating
Type of refrigerantR32
Refrigerant pre-charge2.1 kg
Global warming potential (GWP)675
Connection voltage230 V
Cooling capacity3.2 - 11 kW
Heating capacity3 - 12.5 kW
SEER (cooling)6.6
Energy efficiency class coolingA++
Height292 mm
Width950 mm
Depth950 mm
Nominal diameter fluid pipe3/8 inch
Nominal diameter suction pipe5/8 inch
Product codes
SAPDIK855
PLCK2110317
Manufacturer part number398700029
Vendor material number398700029
Basic information
Package measurements (L x W x H)943 x 923 x 272 mm
Package volume236.746 l
Package weight21 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101701
BrandARGO
VendorARGOCLIMA S.P.A.
