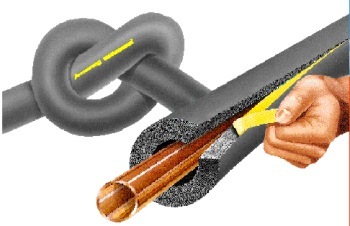

INSULATION TUBE SH 18X10-A SELF-ADHESIVE
SH/ArmaFlex is an extremely flexible, closed-cell, and compression-molded insulation material equipped with Microban antimicrobial protection. Its low thermal conductivity minimizes heat loss in heating and water piping systems.
SH/ArmaFlex is suitable for insulating and protecting heating and piping systems. The integrated and durable Microban protection provides an additional layer of defense against mold and microbial growth, making SH/ArmaFlex an ideal and durable solution for public spaces such as schools, hospitals, nursing homes, offices, and airports.
Self-adhesive products shall be stored in a dry, clean environment at normal humidity levels (50–70%) and temperatures between 0–35 °C. Storage time is one year.
Features- Color: gray
- Length: 2.0 m, with tangential cut
- Maximum pipe outer diameter: 18 mm, insulation thickness: 11 mm
- Hose inner diameter: 19.0–20.5 mm
- Integrated, active Microban® antimicrobial protection
- Self-adhesive coating: pressure-sensitive acrylic-based adhesive covered with polyethylene film
- Material: synthetic cellular rubber foam (FEF) manufactured in accordance with EN 14304
- Maximum operating temperature: +110 °C (in accordance with EN 14706, EN 14707, and EN 14304)
- Maximum operating temperature: +85 °C if the sheet or tape is fully bonded to the surface
- Minimum operating temperature: as in standard heating and water piping systems
- Thermal conductivity: ? ? 0.040 W/(m · K) (in accordance with EN 12667 and EN ISO 8497)
- Fire performance: building material class BL-s3, d0
- Additional fire rating: FM approved up to 45 mm
- Practical fire behavior: self-extinguishing, does not drip or spread flame
- Protection from UV radiation is required
- Meets sustainable building requirements such as LEED when used with Armaflex SF990 adhesive
- Storage time: 1 year
