INSULATION TUBE SH 28X10-A SELF-ADHESIVE

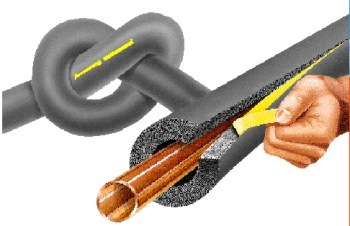

SH/ArmaFlex is an extremely flexible, closed-cell, compression-molded insulation material equipped with Microban antimicrobial protection. Its low thermal conductivity minimizes heat loss in heating and water piping systems.

SH/ArmaFlex is suitable for insulating and protecting heating and piping systems. The integrated and durable Microban protection provides an additional layer of defense against mold and microbial growth, making SH/ArmaFlex an ideal and durable solution for public spaces such as schools, hospitals, nursing homes, offices, and airports.

Self-adhesive products shall be stored in a dry, clean environment at normal humidity levels (50–70%) and temperatures between 0–35 °C. Storage time is one year.

Features

• color: gray
• length 2.0 m, with tangential cut
• maximum pipe outer diameter: 28 mm, insulation thickness: 11 mm
• hose inner diameter: 29.0–30.5 mm
• integrated, active Microban® antimicrobial protection
• self-adhesive coating: pressure-sensitive acrylic-based adhesive covered with polyethylene film
• material: synthetic cellular rubber foam (FEF) manufactured in accordance with EN 14304
• maximum operating temperature +110 °C (in accordance with EN 14706, EN 14707, and EN 14304)
• maximum operating temperature +85 °C if the sheet or tape is fully bonded to the surface
• minimum operating temperature: as in standard heating and water piping systems
• thermal conductivity: ? ? 0.040 W/(m · K) (in accordance with EN 12667 and EN ISO 8497)
• fire performance: building material class BL-s3, d0
• other fire class: FM approved up to 45 mm
• practical fire behavior: self-extinguishing, does not drip or spread flame
• protection from UV radiation is required
• meets sustainable building requirements such as LEED when used with Armaflex SF990 adhesive
• storage time: 1 year

This product description is an automated translation of the original Finnish description.
