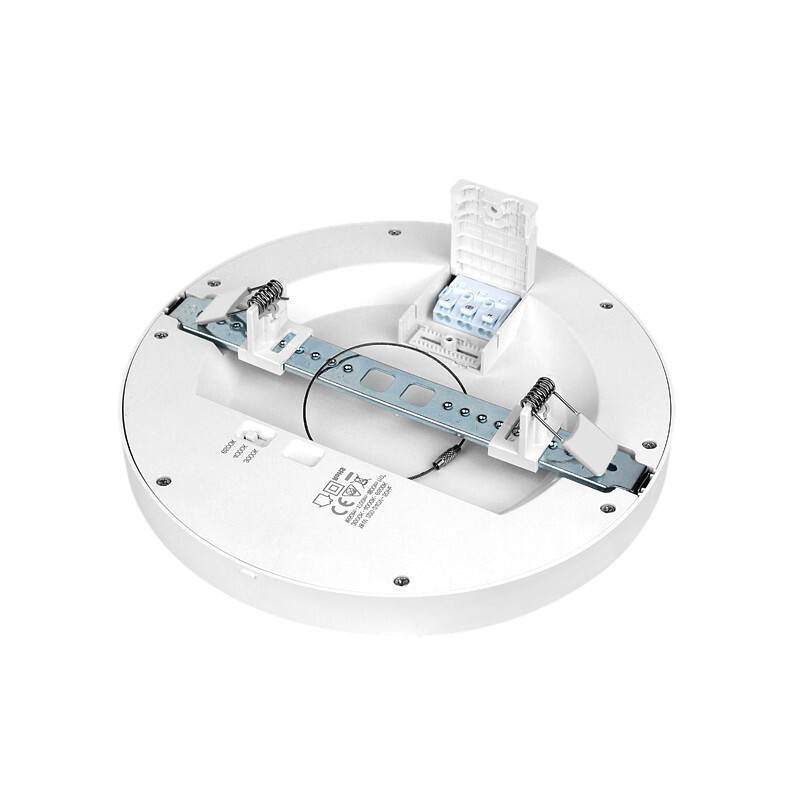

DOWNLIGHT ALLROUND 1150LM 12W 3/4/5K 165 DIM W
Product code
4291641
The ALLROUND recessed light is a general-purpose light with a wide beam angle. Suitable applications include renovation projects where installation opening sizes vary. Installation opening for recessed mounting: 50 - 125 mm. The light color temperature can be switched using a DIP switch with options of 2700 K/3000 K/4000 K. This model is dimmable. The light fixture body is white and can be used without separate frames. Frames are available in white, black, and brushed steel finishes.
The light can be chained together using the light's spring connectors.
Technical specifications- Light output: 1170 lumens (2700 K), 1190 lumens (3000 K), 1220 lumens (4000 K)
- Diameter: 165 mm
- Height: 22 mm
- Dimmable: yes
- Service life: L70B50 50 000h Ta 45 °C
- Installation opening for recessed mounting: 50 - 125 mm
- Beam angle: 110°
- IP20
- Color temperature: 2700 K/3000 K/4000 K, selectable via DIP switch
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingyes
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
AdjustabilityNot adjustable
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Housing materialPlastic
Product codes
SAPDJB385
STK4291641
PLC4291641
GTIN/EAN6430080494408
Manufacturer part numberJPL-ALR165V-12WDIP
Vendor material number4291641
Basic information
Package measurements (L x W x H)191 x 201 x 42 mm
Package volume1.612 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.5
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
