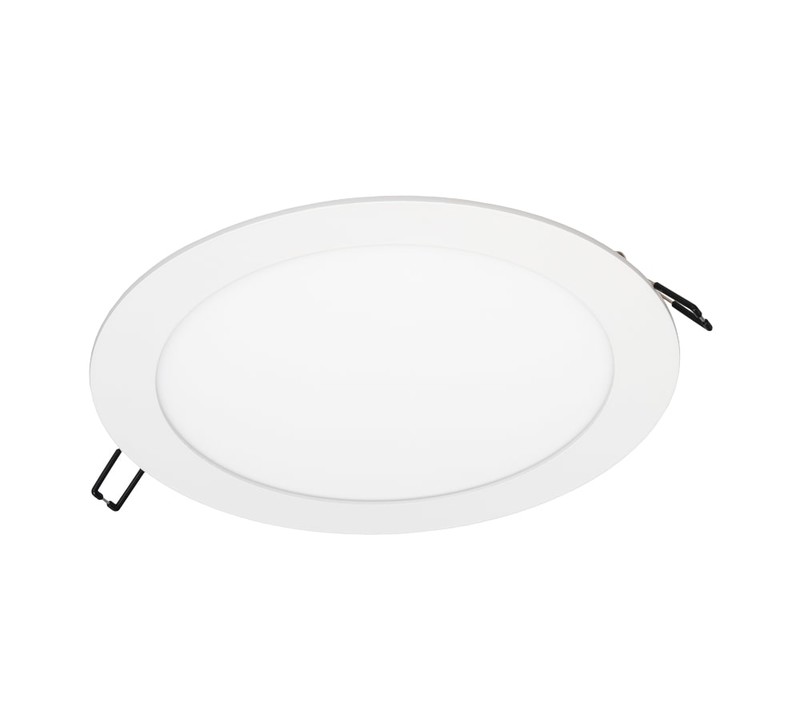

DOWNLIGHT CORE DIM IP44 1390LM 18W 3CCT 224 DIM W

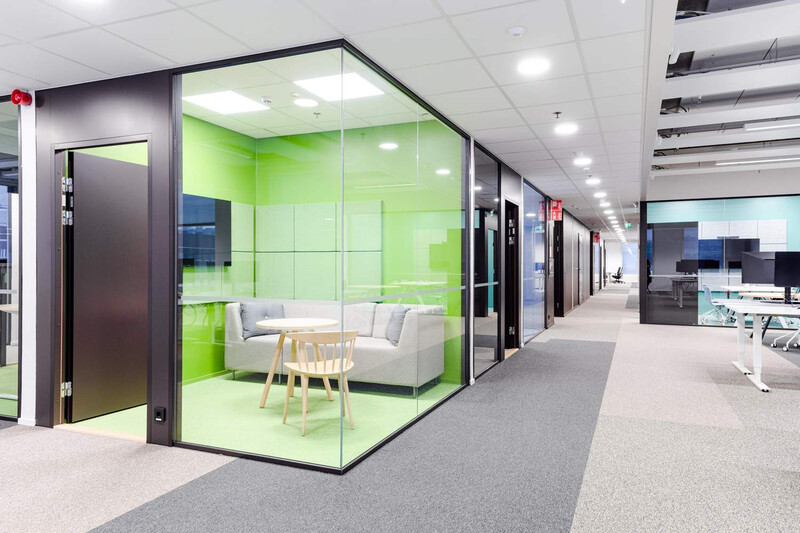

CORE Multi is a low-profile general lighting fixture designed for residential buildings and corridor lighting. Power is available in five different options. The color temperature of the light can be adjusted using a DIP switch with options of 3000 K/3500 K/4000 K. This model is dimmable and rated IP44, making it suitable for humid environments. A low installation height provides an advantage in lighting challenging spaces. The connection device offers ample space for chaining. The power supply compatible with MMJ wiring features a push-to-release cable pull for faster installation. Technical specifications

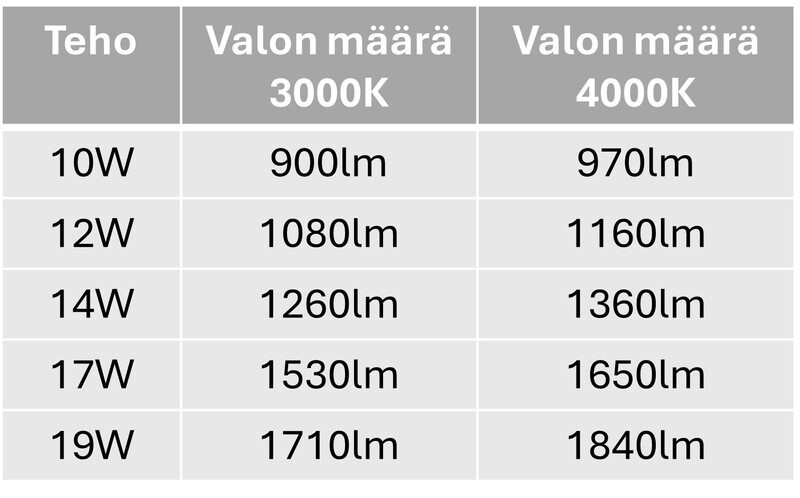

• power: 10 W / 12 W / 14 W / 17 W / 19 W
• light output at 3000 K: 900 / 1080 / 1260 / 1530 / 1710 lumens
• light output at 4000 K: 970 / 1160 / 1360 / 1650 / 1840 lumens
• diameter: 224 mm
• installation opening: 205 - 215 mm
• height: 24 mm
• dimmable: yes
• lifespan L70B10 >100 000h Ta 45 °C
• lifespan L80B10 70 000h Ta 45 °C
• beam angle: 110°
• color temperature: 3000 K/3500 K/4000 K, selectable via DIP switch

Also available with DALI or push-button control. The luminaire is also available in black.

This product description is an automated translation of the original Finnish description.
