DOWNLIGHT FOKUS IP65 820LM 10W 3-5,7K ZG B

Product code
4291681

Zigbee downlight with adjustable dimming level and color temperature. Can be controlled via a smartphone using the Philips Hue app or a separate Zigbee controller. To control the lights via a Zigbee network, you need a Philips Hue bridge or another compatible control hub that must be connected to WiFi.

FOKUS downlights enable targeted lighting in addition to general illumination, for example in sloped ceilings. The beam of the adjustable downlight or spotlight can be directed around its axis by approximately 30 degrees. The light is dimmable and rated IP65, suitable for damp environments. The beam angle is 60°.

The lights can be connected in series using spring terminals. The power supply compatible with MMJ wiring features a push-to-release cable pull for faster installation.

Technical specifications
  • light output: 820 lumens

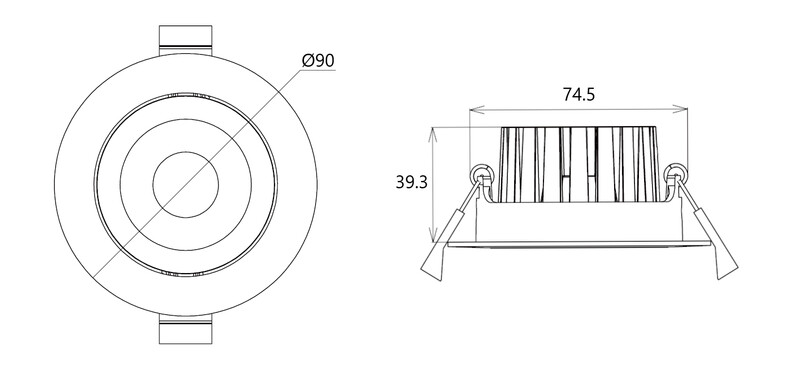

  • diameter: 90 mm
  • cut-out size: 75-80 mm
  • height: 40 mm
  • control method: Zigbee
  • lifespan: L70B10 >100 000h Ta 45 °C
  • lifespan: L80B10 68 000h Ta 45 °C
  • beam angle: 60°
  • color temperature: 3000 K-5700 K

Second color option: white.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingno
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Housing materialAluminium
Surface protection housingPowder coating
Housing colourBlack
Material coverPlastic, transparent
Type of gridHigh-gloss
Voltage typeAC

Product codes

SAPDJB352
STK4291681
PLC4291681
GTIN/EAN6430080494286
Manufacturer part numberJPL-SA90M-10W-ZG
Vendor material number4291681

Basic information

Package measurements (L x W x H)110 x 110 x 90 mm
Package volume1.089 l
Package weight0.3 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandARTEN
VendorARTEN OY

Documents (2)

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)3.9
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameArten Oy
Postal addressKipsitie 3 lt. 6, 90620 Oulu
