DOWNLIGHT FOKUS IP65 820LM 8W 4K DIM ADJUST HT
Product code
4123261

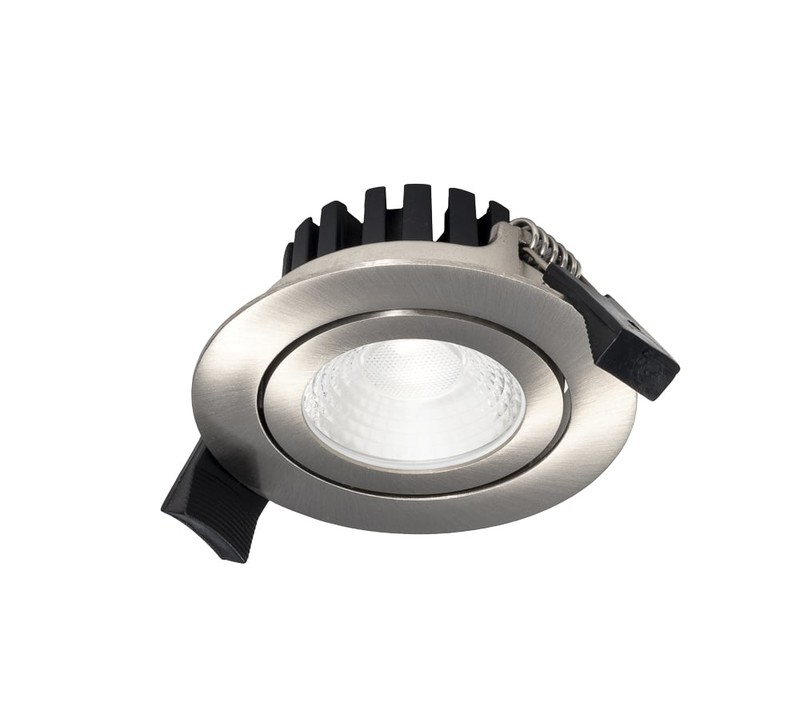

FOKUS 8W downlight is a directional luminaire with a beam angle of 36°. Suitable applications include residential buildings and public spaces. The luminaire is suitable for both accent lighting and general area lighting.
The luminaire can be connected to the power supply using spring terminals. Strain relief must also be provided for the wires leading to the power supply, making the installation of the luminaire effortless and quick. The power supply is suitable for MMJ wiring. Also available with DALI or push-button control, in white and black finishes.
Features- light output: 770 lumens

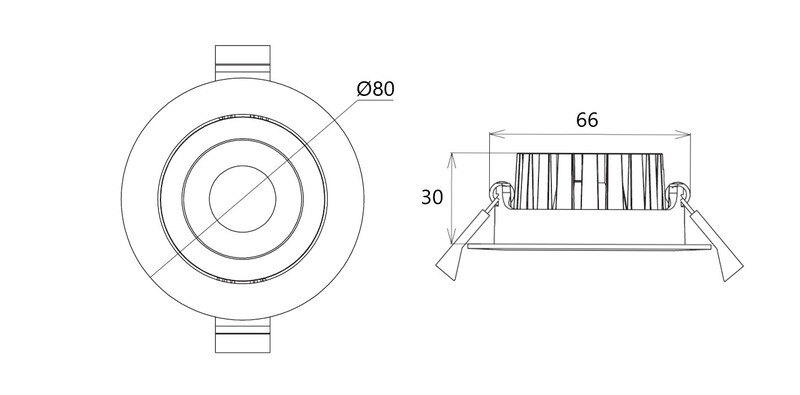

- diameter: 80 mm
- cut-out size: 68-72 mm
- height: 30 mm
- dimmable: yes
- lifespan: L80B10 68 000h Ta 45°C
- beam angle: 36°
- color temperature: 4000K
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingno
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceno
Housing materialAluminium
Surface protection housingOther
Housing colourNickel
Material coverPlastic, opal
Type of gridHigh-gloss
Voltage typeAC
Product codes
SAPCSA210
STK4123261
PLC4123261
GTIN/EAN6430080490837
Manufacturer part numberJPL-SA80H-8W-4000K
Vendor material number4123261
Basic information
Package measurements (L x W x H)115 x 115 x 75 mm
Package volume0.992 l
Package weight0.2 kg
Base uniteach
Package units1 / 36 / 216 / 1296
Package contents–
UNSPSC39111515
BrandARTEN
VendorARTEN OY
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
