DOWNLIGHT NOVA DEEP IP44 1100LM 3K UGR19 DIM BL

Product code
4236783
NOVA DEEP is a general lighting fixture with the light source deeply recessed. Suitable applications include residential buildings, public spaces, and offices. The fixture is particularly suited for living areas or offices where glare reduction is desired. The fixture is IP44 rated, making it suitable for damp environments. The fixture can be chained together using spring connectors on the power supply. Strain relief is also provided for the wires connected to the power supply, ensuring easy and quick installation. The power supply is compatible with MMJ wiring. The color temperature of the fixture is selectable via a DIP switch, with options of 3000K/3500K/4000K. Features
  • light output: 1100 lumens

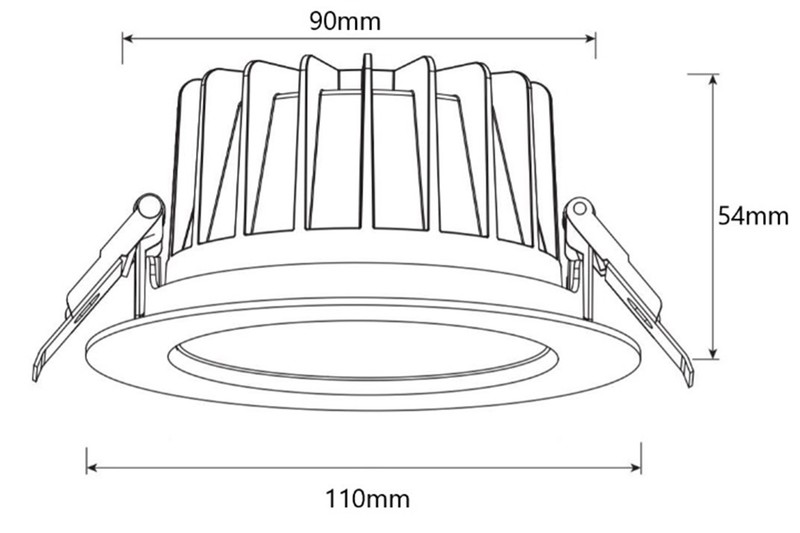

  • diameter: 110 mm
  • cut-out size: 90 mm
  • height: 54 mm
  • dimmable: yes
  • lifespan: L80B10 68 000h Ta 45°C
  • beam angle: 90°
  • color temperature: 3000K

Also available with DALI or push-button control.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityNot adjustable
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceno

Product codes

SAPCZY113
STK4236783
PLC4236783
GTIN/EAN6430080492367
Manufacturer part numberJPL-KAR110M-10W-3000K
Vendor material number4236783

Basic information

Package measurements (L x W x H)117 x 117 x 90 mm
Package volume1.232 l
Package weight0.34 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandARTEN
VendorARTEN OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)4.42
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameArten Oy
Postal addressKipsitie 3 lt. 6, 90620 Oulu
