DOWNLIGHT NOVA IP44 1620LM 18W 3CCT 190 DIM B
Product code
4123275
NOVA -downlight is a general lighting fixture with the light source recessed. Suitable applications include residential buildings and public spaces. The fixture is IP44 rated, making it suitable for damp environments.
The fixture can be chained together using the spring terminals included with the connection box. The connection box is suitable for MMJ wiring. The color temperature of the light can be selected via a DIP switch, with options of 3000K/3500K/4000K. Light output: 1480 lumens (3000K), 1620 lumens (4000K). Also available with DALI or push-button control, in white and gray.

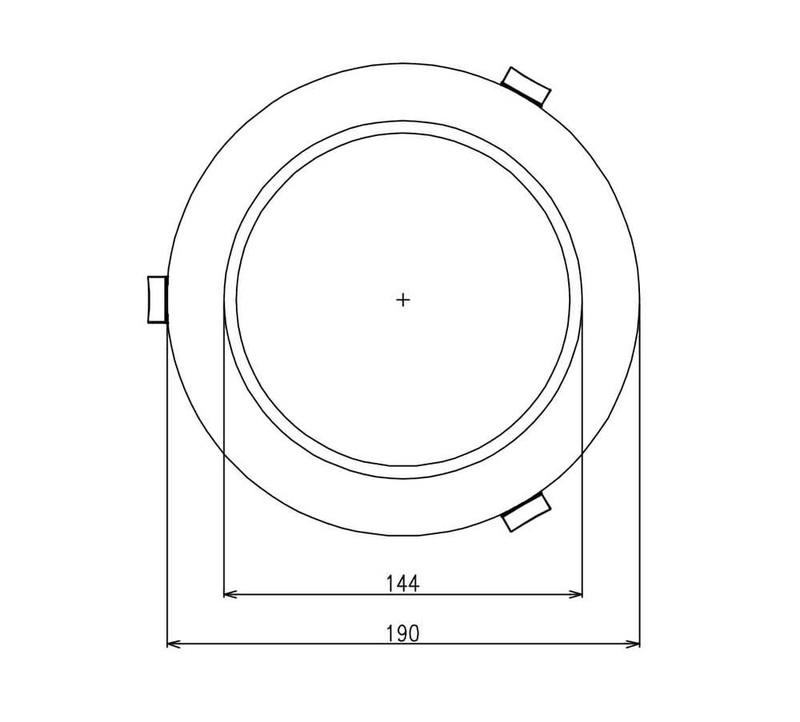

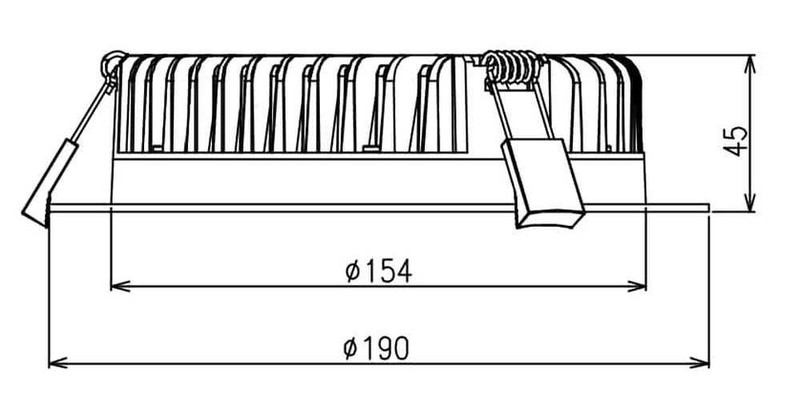

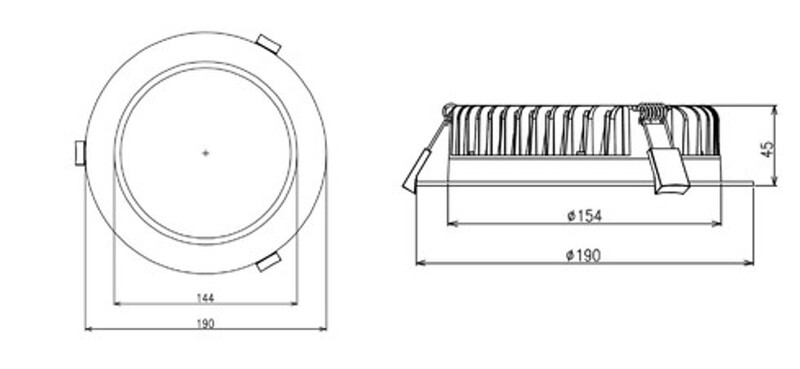

Features- diameter: 190 mm
- installation opening: 160-170 mm
- height: 45 mm
- dimmable: yes
- lifespan: L80B10 77 000h Ta 45°C
- beam angle: 90°
- color temperature: 3000K/3500K/4000K, selectable via DIP switch
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityNot adjustable
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Product codes
SAPCSA220
STK4123275
PLC4123275
GTIN/EAN6430080490936
Manufacturer part numberJPL-KA190M-18WDIP
Vendor material number4123275
Basic information
Package measurements (L x W x H)200 x 200 x 90 mm
Package volume3.6 l
Package weight0.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (7)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10.4
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
