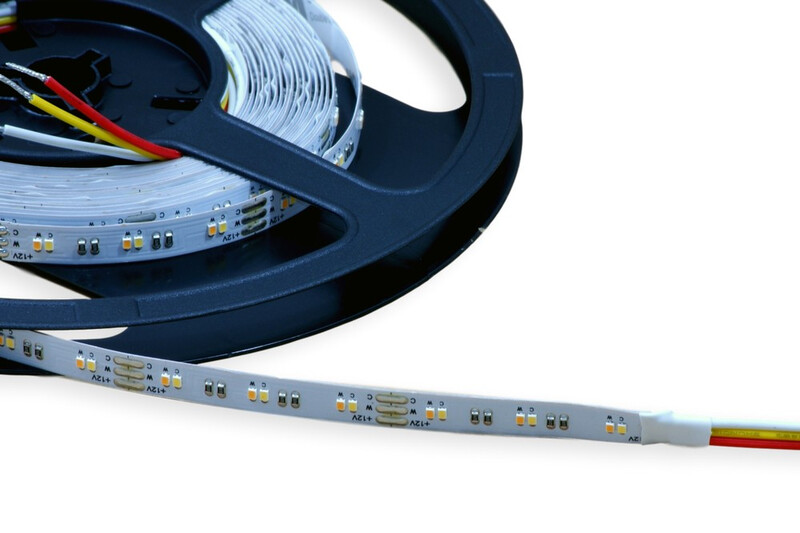

LED STRIP 12W/M CCT 2.3K-6K IP65 24V 5M
Product code
4236752
With the CCT light strip, you can adjust the color temperature to your desired level between 2300K-6000K. The dimming level and color temperature of the strip can be controlled via a wireless controller and receiver or a DALI DT8 interface device. In addition to wireless control, the strip can also be operated with a standard wall switch. The light strip is IP65 rated, making it suitable for humid environments and outdoor use. From Jupele's range, you can find wireless controllers and receivers as well as DALI DT8 interface devices for controlling the light strip. The CCT light strip can also be dimmed like other strips by using a TRIAC dimmable power supply. The roll length is 5 m. The light strip must be mounted on an aluminum profile or another heat-conducting surface.
Features
- light output: 770 lumens/m
- number of LEDs: 120 LED/m
- dimmable: yes, with a dimmable power supply
- connection cable length: 200 cm at both ends of the strip
- cutting interval: 10 cm
- lifespan: L70B10 56 000h Ta 25°C
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter120
Lamp power per meter12 W
Luminous flux per meter700 lm
Luminaire efficacy58 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015G
Degree of protection (IP)IP65
Protection class according to IEC 61140III
Colour of lightWhite
Product codes
SAPCSA282
STK4236752
PLC4236752
GTIN/EAN6430080491698
Manufacturer part numberJPL-VNCCT12W-24VWP
Vendor material number4236752
Basic information
Package measurements (L x W x H)240 x 212 x 12 mm
Package volume0.611 l
Package weight0.123 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.599
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
