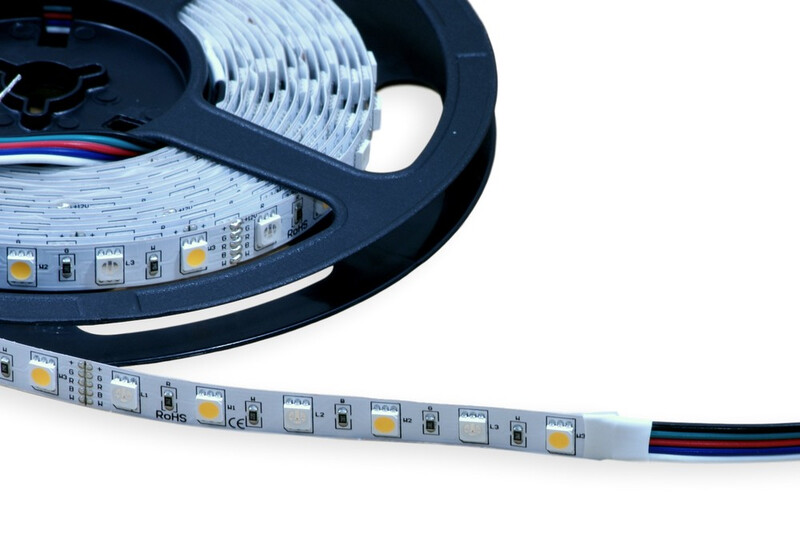

LED STRIP 14,4W/M RGBW IP20 12V 5M
Product code
4236747
RGBW light strips can be wirelessly controlled using dedicated controllers and receivers. In addition to the controller, the light strip can also be controlled with a standard wall switch. From Jupele's range, you can find various controllers for RGBW control. RGBW light strips can also be dimmed like other strips by using a TRIAC-dimmable power supply. R = red, G = green, B = blue, W = white (3000K). The roll length is 5 m. The light strip must be mounted on an aluminum profile or another heat-conducting surface.
Features
- light output: 495 lumens/m
- LED count: 60 LED/m
- dimmable: yes, with a dimmable power supply
- connection cable length: 200 cm at each end of the strip
- cutting interval: 10 cm
- lifespan: L70B10 56 000h Ta 25°C
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter60
Lamp power per meter14.4 W
Luminous flux per meter760 lm
Luminaire efficacy34 lm/W
Voltage typeDC
Lamp voltage12-12 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015G
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Colour of lightRGBW
Product codes
SAPCSA277
STK4236747
PLC4236747
GTIN/EAN6430080491643
Manufacturer part numberJPL-VNRGBW14,4W-12V
Vendor material number4236747
Basic information
Package measurements (L x W x H)240 x 212 x 12 mm
Package volume0.611 l
Package weight0.123 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (3)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.599
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
