LED STRIP 2M CORNER PROFILE
Product code
4291632
2 m long 45° profile for LED strip installation. Can be installed, for example, on the front edge of a kitchen cabinet so that the light is directed toward the work surface. The profile enhances the LED strip's heat dissipation, positively affecting its lifespan. The textured cover produces a uniform, soft light.
- Cutting one profile yields two shorter profile assemblies (end caps and mounts are supplied for two profiles)

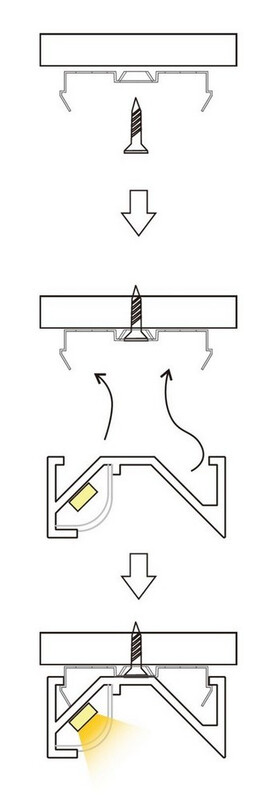

- The cover is installed from the top by pressing

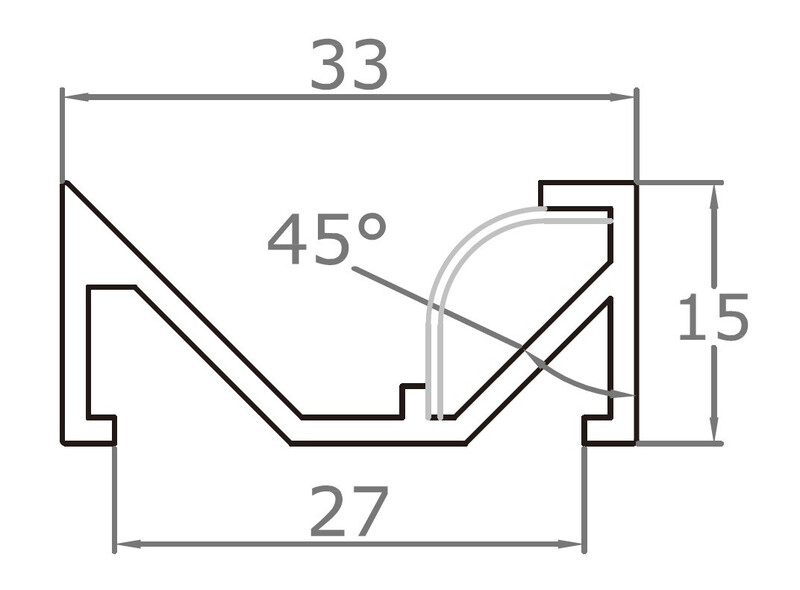

- Width 33 mm, height 15 mm
- Internal width 12.2 mm, compatible with all our strips
- With the textured cover, the light output is approximately 70% of the LED strip's rated light output
- Anodized aluminum
Included in delivery:
- 2 m corner profile
- 2 m textured cover
- 4 mounting clips
- 4 screws
- 2 solid end caps
- 2 perforated end caps This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
Mounting methodSurface mounting
Beam angle adjustableNo
Width33 mm
Height/depth15 mm
Total length2 m
With end pieceyes
With connection setyes
With protective coveryes
Self-adhesiveno
Product codes
SAPDJB331
STK4291632
PLC4291632
GTIN/EAN6430080494415
Manufacturer part numberJPL-AL11-2M
Vendor material number4291632
Basic information
Package measurements (L x W x H)2000 x 50 x 50 mm
Package volume5 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.5
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
