LED STRIP BASE 12V 14,4W/M 1350LM/M 12V 3K 2,5M
Product code
4246539
Dimmable dry location (IP20) light strip. Light output 1150 lm/m and strip length 2.5 m. 120 LEDs/m.

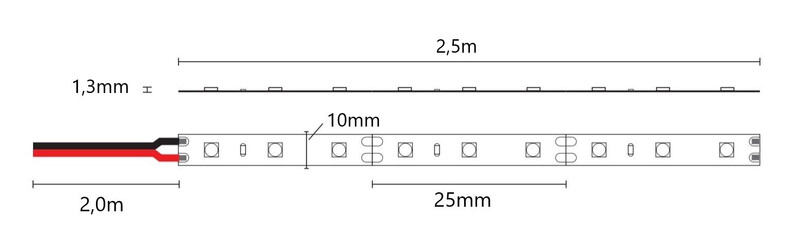

Features- Roll length: 2.5 m
- Light output: 1150 lumens/m
- LED count: 120 LEDs/m
- Dimmable: yes, with a dimmable power supply
- Service life: L70B50 75000h 55°C
- 200 cm installation cables at both ends of the strip
- Can be cut every 2.5 cm. Can be extended with connectors
- Attachment with 3M tape on the back of the strip
- The light strip must be mounted on an aluminum profile or any other heat-conducting surface
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter120
Lamp power per meter14.4 W
Luminous flux per meter1150 lm
Luminaire efficacy80 lm/W
Voltage typeDC
Lamp voltage12-12 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015E
Rated lifetime L70/B50 at 25 °C56000 h
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Product codes
SAPDET642
STK4246539
PLC4246539
GTIN/EAN6430080492954
Manufacturer part numberJPL-VN14,4W120-12V-2,5M-3000K
Vendor material number4246539
Basic information
Package measurements (L x W x H)240 x 212 x 10 mm
Package volume0.509 l
Package weight0.112 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.456
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
