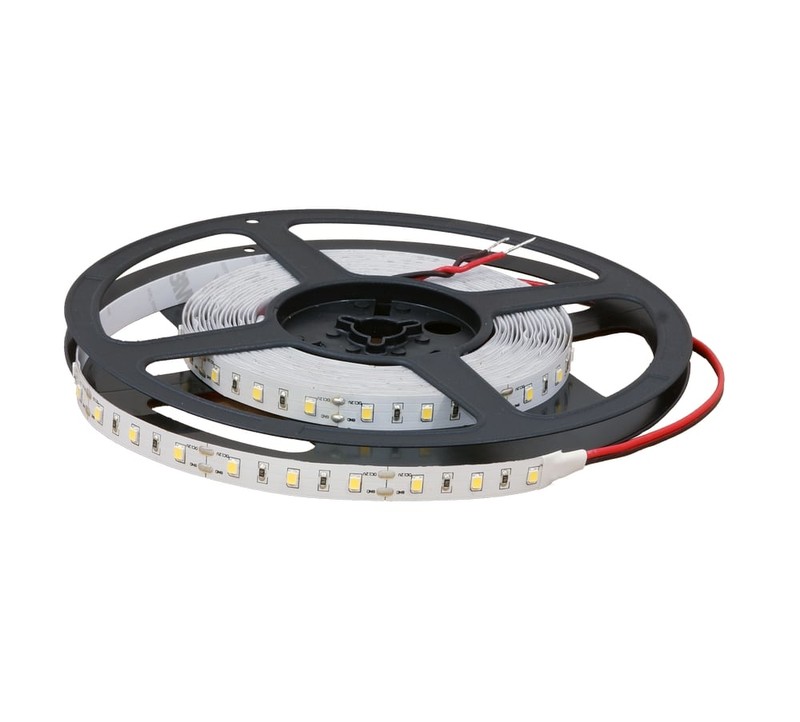

LED STRIP BASE 12V 14,4W/M IP20 12V 4000K 5M
Product code
4123213

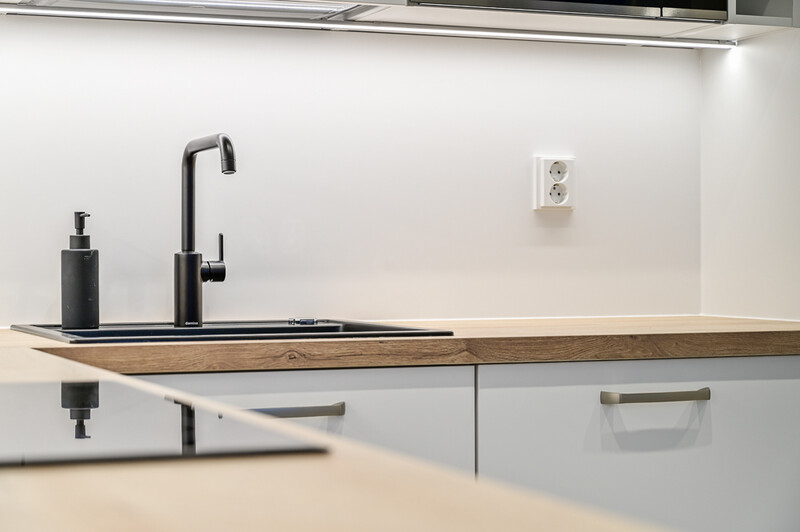

The LED strip is a practical lighting solution that is easy to install. The most common use of the LED strip is kitchen countertop lighting. LED strips can also be utilized for general lighting and various indirect lighting applications. At the request of contractors, the LED strip has 200 cm connection cables on both ends and a dense 5 cm cutting interval. The roll length is 5 m. The LED strip must be mounted on an aluminum profile or another heat-conducting surface.
Features
- light output: 1150 lumens/m
- number of LEDs: 60 LEDs/m
- dimmable: yes, with a dimmable power supply

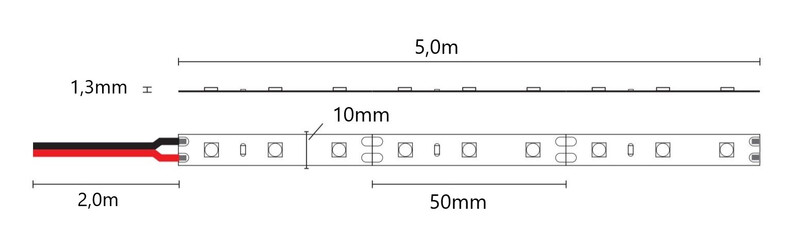

- connection cable length: 200 cm on both ends of the strip
- cutting interval: 5 cm
- lifespan: L70B10 56 000h Ta 25°C
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter60
Lamp power per meter14.4 W
Luminous flux per meter1150 lm
Luminaire efficacy73 lm/W
Voltage typeDC
Lamp voltage12-12 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015G
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Colour of lightWhite
Product codes
SAPCSA176
STK4123213
PLC4123213
GTIN/EAN6430080490462
Manufacturer part numberJPL-VN14,4W-12V-4000K
Vendor material number4123213
Basic information
Package measurements (L x W x H)240 x 212 x 12 mm
Package volume0.611 l
Package weight0.123 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.599
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
