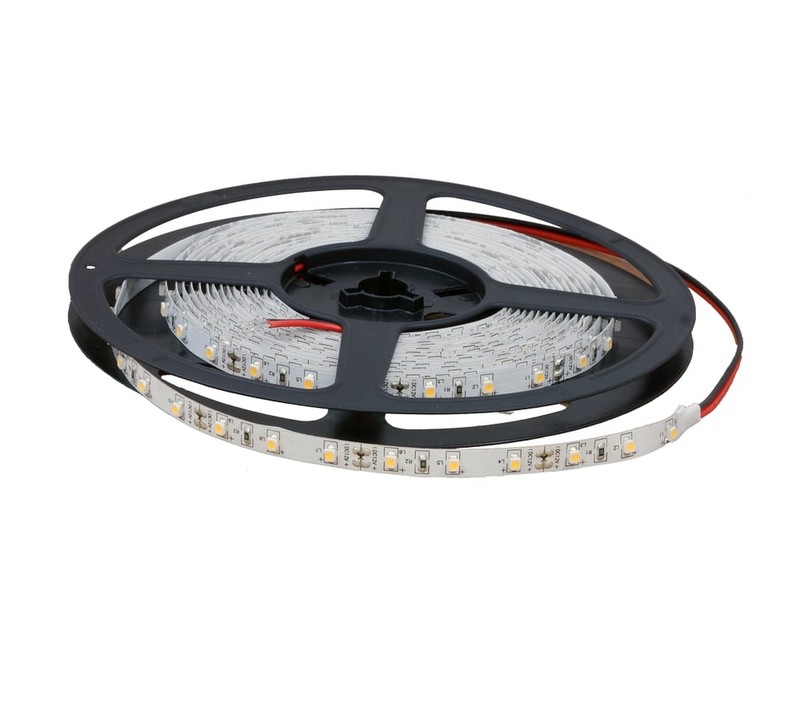

LED STRIP BASE 12V 4,8W/M IP20 12V 3000K 2,5M
Product code
4236753
The LED strip is a practical lighting solution that is easy to install. The most common use of the LED strip is kitchen countertop lighting. LED strips can also be utilized for general lighting and various indirect lighting applications. At the request of contractors, the LED strip has 200 cm connection cables on both ends and a 5 cm cutting interval. The roll length is 2.5 m. The LED strip must be mounted on an aluminum profile or another heat-conducting surface.
Features
- light output: 420 lumens/m
- number of LEDs: 60 LED/m
- dimmable: yes, with a dimmable power supply

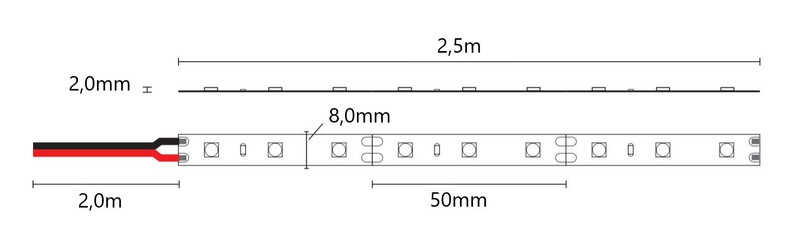

- connection cable length: 200 cm on both ends of the strip
- cutting interval: 5 cm
- lifespan: L70B10 56 000h Ta 25°C
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter60
Lamp power per meter4.8 W
Luminous flux per meter420 lm
Luminaire efficacy83 lm/W
Voltage typeDC
Lamp voltage12-12 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015G
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Colour of lightWhite
Product codes
SAPCSA283
STK4236753
PLC4236753
GTIN/EAN6430080491704
Manufacturer part numberJPL-VN4,8W-12V-3000K 2,5M
Vendor material number4236753
Basic information
Package measurements (L x W x H)240 x 212 x 10 mm
Package volume0.509 l
Package weight0.112 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.456
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
