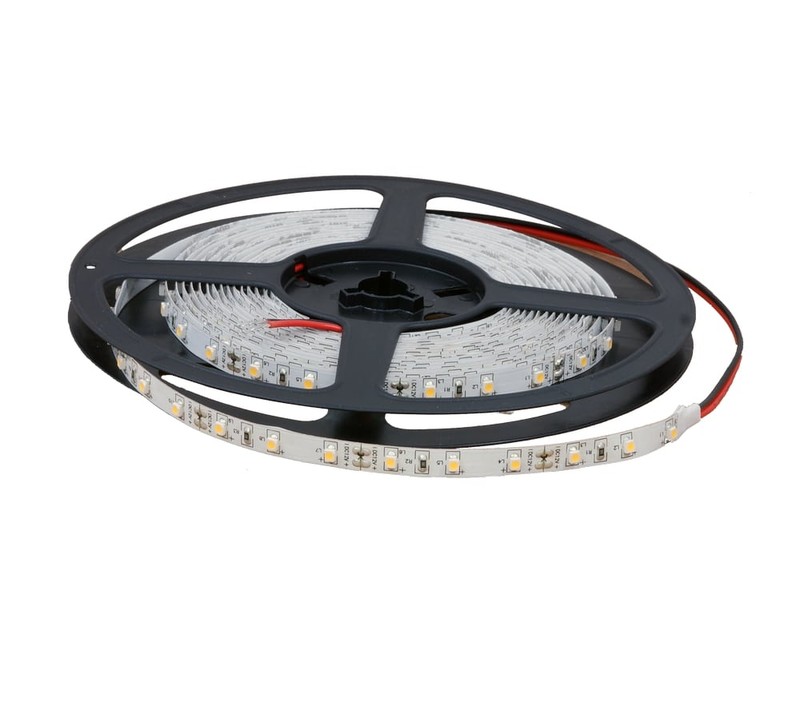

LED STRIP BASE 12V 4,8W/M IP20 24V 4000K 2,5M
Product code
4236760

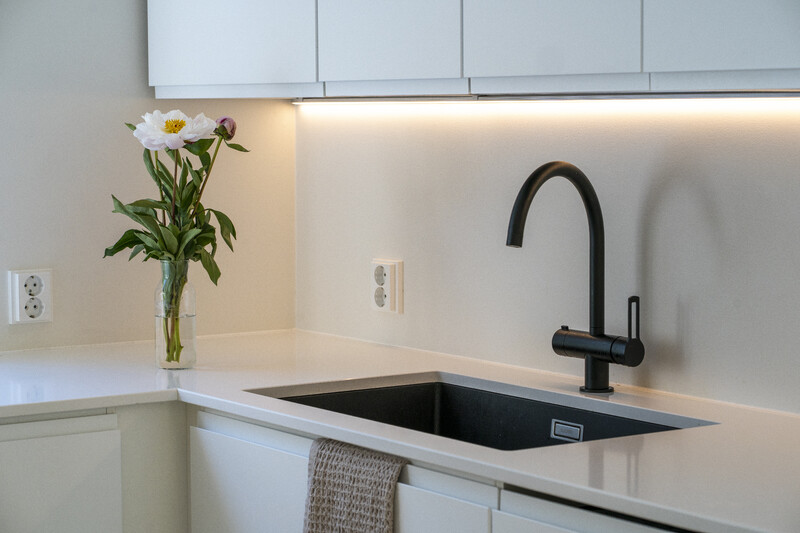

The LED strip is a practical lighting solution that is easy to install. The most common use of the LED strip is kitchen countertop lighting. LED strips can also be utilized for general lighting and various indirect lighting applications. At the request of contractors, both ends of the LED strip feature 200 cm connection cables. The roll length is 2.5 m. The LED strip must be mounted onto an aluminum profile or any other heat-conducting surface.
Features
- light output: 420 lumens/m
- number of LEDs: 60 LEDs/m
- dimmable: yes, with a dimmable power supply

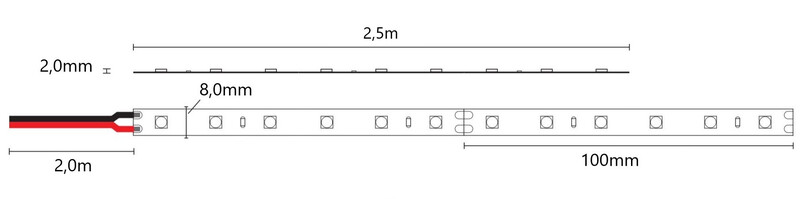

- connection cable length: 200 cm at each end of the strip
- cutting interval: 10 cm
- lifespan: L70B10 56 000h Ta 25°C
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter60
Lamp power per meter4.8 W
Luminous flux per meter420 lm
Luminaire efficacy90 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015F
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Colour of lightWhite
Product codes
SAPCSA290
STK4236760
PLC4236760
GTIN/EAN6430080491773
Manufacturer part numberJPL-VN4,8W-24V-4000K 2,5M
Vendor material number4236760
Basic information
Package measurements (L x W x H)240 x 212 x 10 mm
Package volume0.509 l
Package weight0.112 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.456
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
