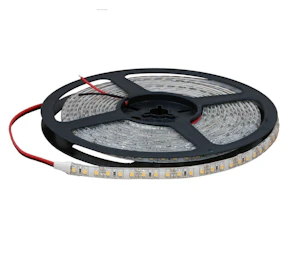

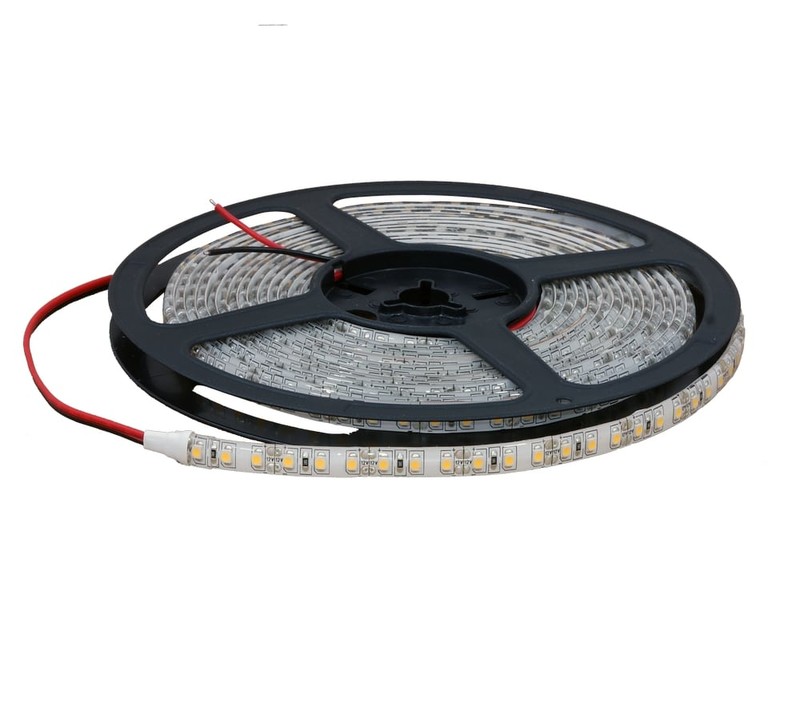

LED STRIP BASE 12V 9,6W/M IP65 12V 4000K 5M
Product code
4123217
The LED strip is a practical lighting solution that is easy to install. LED strips can also be used for general lighting and various indirect lighting applications. The IP65-rated strip is suitable for damp environments and outdoor use. At the request of contractors, both ends of the LED strip feature 200 cm connection cables, and the strip has a dense 2.5 cm cutting interval. The roll length is 5 m. The LED strip must be mounted on an aluminum profile or another heat-conducting surface.
Features
- light output: 770 lumens/m
- number of LEDs: 120 LED/m
- dimmable: yes, with a dimmable power supply
- connection cable length: 200 cm at both ends of the strip

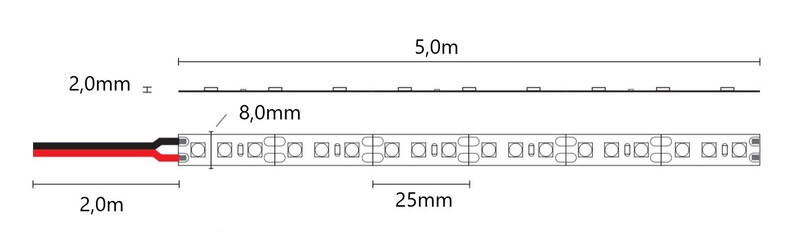

- cutting interval: 2.5 cm
- lifespan: L70B10 56 000h Ta 25°C
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter120
Lamp power per meter9.6 W
Luminous flux per meter830 lm
Luminaire efficacy86 lm/W
Voltage typeDC
Lamp voltage12-12 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015F
Degree of protection (IP)IP67
Protection class according to IEC 61140III
Colour of lightWhite
Product codes
SAPCSA180
STK4123217
PLC4123217
GTIN/EAN6430080490509
Manufacturer part numberJPL-VN9,6W-12VWP-4000K
Vendor material number4123217
Basic information
Package measurements (L x W x H)240 x 212 x 10 mm
Package volume0.509 l
Package weight0.23 kg
Base uniteach
Package units1 / 20 / 240 / 960
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.99
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
