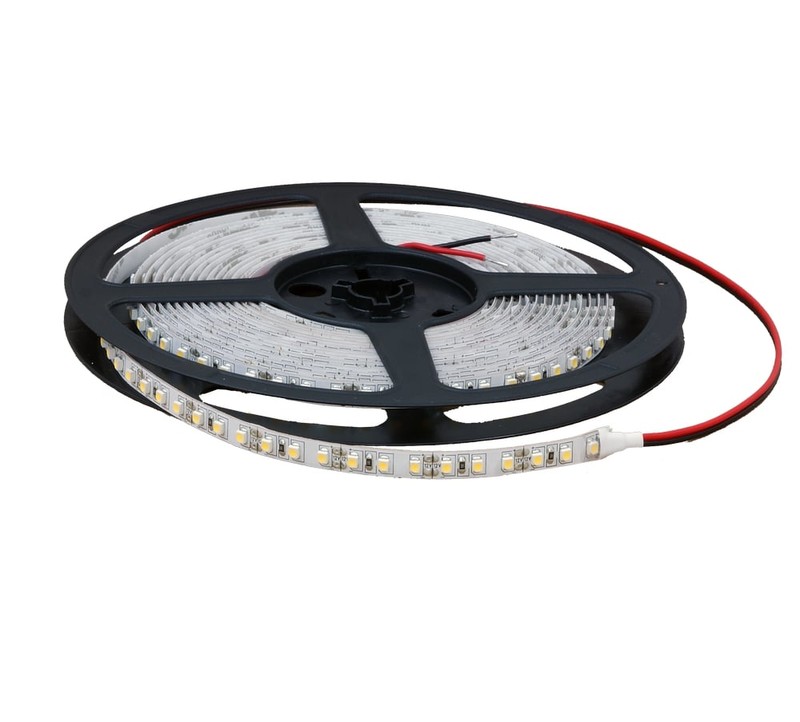

LED STRIP BASE 24V 1350LM/M IP65 24V 3000K 5M
Product code
4236790
The LED strip is a practical lighting solution that is easy to install. LED strips can be used for general lighting and various indirect lighting applications. The IP65-rated strip is suitable for damp environments and outdoor use. At the request of contractors, both ends of the LED strip feature 200 cm connection cables, and the strip has a dense 2.5 cm cutting interval. The roll length is 5 m.
Features
- light output: 1350 lumens/m
- number of LEDs: 120 LED/m
- dimmable: yes, with a dimmable power supply
- connection cable length: 200 cm at both ends of the strip

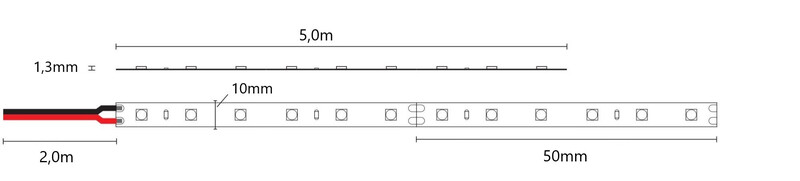

- cutting interval: 5 cm
- lifespan: L70B10 56 000h Ta 25°C
The LED strip must be mounted on an aluminum profile or any other heat-conducting surface.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter120
Lamp power per meter14.4 W
Luminous flux per meter1350 lm
Luminaire efficacy94 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015E
Rated lifetime L70/B50 at 25 °C56000 h
Degree of protection (IP)IP65
Protection class according to IEC 61140III
Product codes
SAPCZY209
STK4236790
PLC4236790
GTIN/EAN6430080492435
Manufacturer part numberJPL-VN14,4W120-24VWP-3000K
Vendor material number4236790
Basic information
Package measurements (L x W x H)240 x 212 x 12 mm
Package volume0.611 l
Package weight0.123 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.599
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
