LED STRIP BASE 24V 1350LM/M IP65 24V 4000K 5M

Product code
4236791
The LED strip is a practical lighting solution that is easy to install. LED strips can be used for general lighting and various indirect lighting applications. The IP65-rated strip is suitable for damp environments and outdoor use. At the request of contractors, both ends of the LED strip feature 200 cm connection cables, and the strip has a dense 2.5 cm cutting interval. The roll length is 5 m. Features
  • light output: 1350 lumens/m
  • number of LEDs: 120 LED/m
  • dimmable: yes, with a dimmable power supply

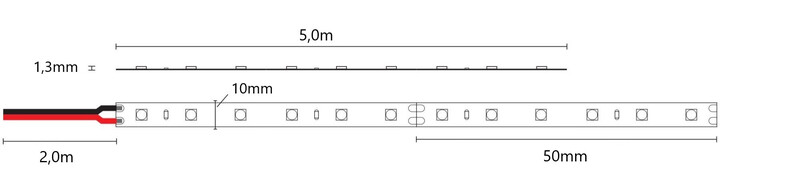

  • connection cable length: 200 cm at both ends of the strip
  • cutting interval: 5 cm
  • lifespan: L70B10 56 000h Ta 25°C

The LED strip must be mounted on an aluminum profile or any other heat-conducting surface.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter120
Lamp power per meter14.4 W
Luminous flux per meter1350 lm
Luminaire efficacy94 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015E
Rated lifetime L70/B50 at 25 °C56000 h
Degree of protection (IP)IP65
Protection class according to IEC 61140III

Product codes

SAPCZY210
STK4236791
PLC4236791
GTIN/EAN6430080492442
Manufacturer part numberJPL-VN14,4W120-24VWP-4000K
Vendor material number4236791

Basic information

Package measurements (L x W x H)240 x 212 x 12 mm
Package volume0.611 l
Package weight0.123 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandARTEN
VendorARTEN OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)1.599
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameArten Oy
Postal addressKipsitie 3 lt. 6, 90620 Oulu
