LED STRIP BASE 24V 4,8W/M IP20 24V 4000K 5M
Product code
4123247

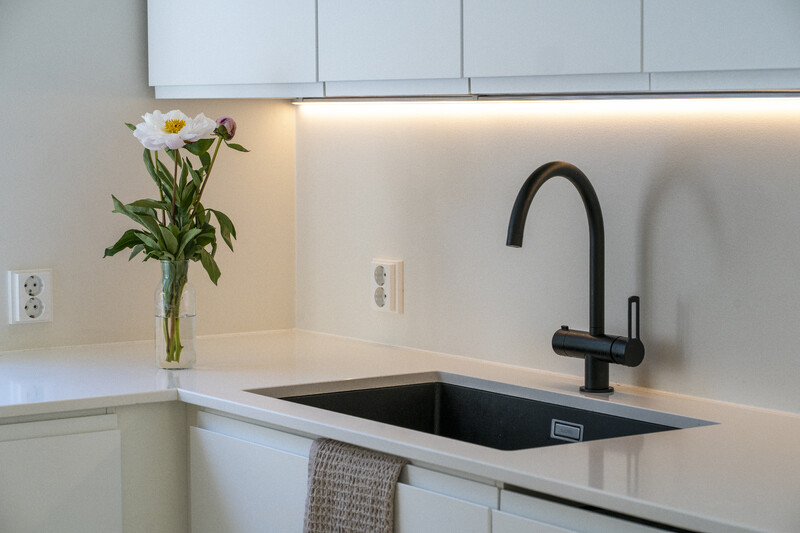

The LED strip is a practical lighting solution that is easy to install. The most common use of the LED strip is kitchen countertop lighting. LED strips can also be utilized for general lighting and various indirect lighting applications. At the request of contractors, both ends of the LED strip feature 200 cm connection cables. The roll length is 5 m. The LED strip must be mounted on an aluminum profile or another heat-conducting surface.
Features
- light output: 420 lumens/m
- number of LEDs: 60 LEDs/m
- dimmable: yes, with a dimmable power supply

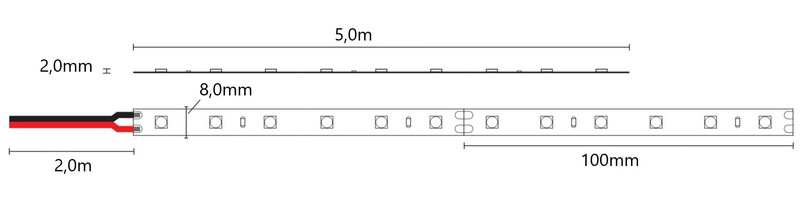

- connection cable length: 200 cm at both ends of the strip
- cutting interval: 10 cm
- lifespan: L70B10 56 000h Ta 25°C
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter60
Lamp power per meter4.8 W
Luminous flux per meter430 lm
Luminaire efficacy90 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015F
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Colour of lightWhite
Product codes
SAPCSA198
STK4123247
PLC4123247
GTIN/EAN6430080490691
Manufacturer part numberJPL-VN4,8W-24V-4000K
Vendor material number4123247
Basic information
Package measurements (L x W x H)240 x 212 x 10 mm
Package volume0.509 l
Package weight0.12 kg
Base uniteach
Package units1 / 20 / 240 / 960
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.56
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
