LED STRIP BASE 24V IP20 19W/M 24V 3K 5M 4500LM
Product code
4123254

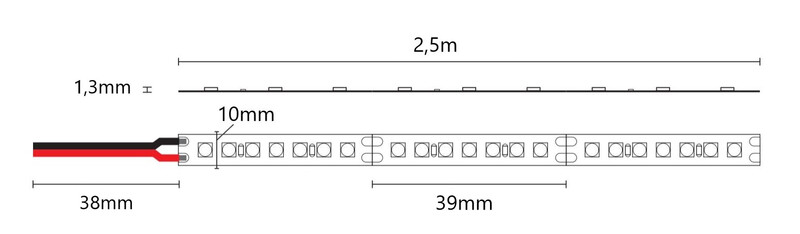

The LED strip is a practical lighting solution that is easy to install. The most common use of the LED strip is kitchen countertop lighting. LED strips can also be utilized for general lighting and various indirect lighting applications. At the request of contractors, the LED strip has 200 cm connection cables at both ends and a dense 5 cm cutting interval.
Features
- Roll length: 2.5 m
- Light output: 1800 lumens/m
- Number of LEDs: 182 LED/m
- Dimmable: yes, with a dimmable power supply
- Connection cable length: 200 cm at both ends of the strip
- Cutting interval: 5 cm
- Service life: L70B50 75000h 55°C
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter182
Lamp power per meter19 W
Luminous flux per meter1890 lm
Luminaire efficacy95 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015F
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Colour of lightWhite
Product codes
SAPDET644
STK4123254
PLC4123254
GTIN/EAN6430080490769
Manufacturer part numberJPL-VN19W-24V-3000K
Vendor material number4123254
Basic information
Package measurements (L x W x H)240 x 212 x 12 mm
Package volume0.611 l
Package weight0.123 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.599
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
