LED STRIP BASE 24V IP20 9,6W/M 880LM/M 24V 4K 2,5
Product code
4246585
Dimmable dry location (IP20) light strip. Light output 830 lm/m (3000K), 880 lm/m (4000K), and strip length 2.5 m. Color temperature 4000K.
Features- Roll length: 2.5 m
- Light output: 880 lumens/m
- LED count: 120 LED/m
- Dimmable: yes, with a dimmable power supply
- Service life: L70B50 75000h 55°C
- 200 cm installation cables at both ends of the strip

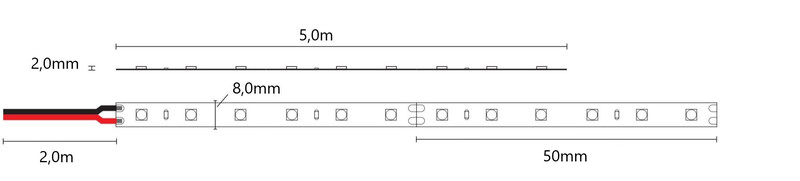

- Can be cut every 5 cm. Extendable with connectors
- Attachment with 3M tape on the back of the strip
- Must be mounted on an aluminum profile or other heat-conductive surface
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter120
Lamp power per meter9.6 W
Luminous flux per meter770 lm
Luminaire efficacy82 lm/W
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015G
Rated lifetime L70/B50 at 25 °C56000 h
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Product codes
SAPDET647
STK4246585
PLC4246585
GTIN/EAN6430080493418
Manufacturer part numberJPL-VN9,6W-24V-2,5M-4000K
Vendor material number4246585
Basic information
Package measurements (L x W x H)240 x 212 x 10 mm
Package volume0.509 l
Package weight0.123 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
