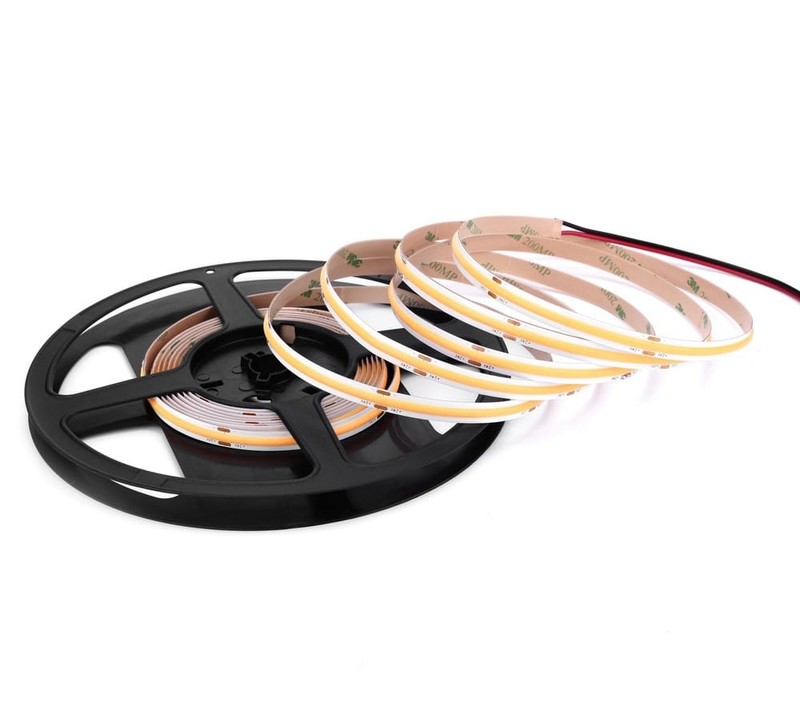

LED STRIP COB 24V 860LM/M IP20 24V 4K COB 10M
Product code
4246536
The light strip can be used in general lighting and various indirect lighting applications.
The COB light strip has a completely uniform light output due to the high number of light points (420 pcs/m). Dimmable dry location (IP20) light strip. Light output of 860 lm/m and strip length of 10 m. Color temperature 4000K.
Features
- Roll length: 10 m
- Light output: 860 lumens/m
- Number of LEDs: 420 LED/m
- Service life: L70B50 75000h 55°C
- 200 cm installation cables at both ends of the strip
- Can be cut every 5 cm. Extendable with connectors
- Attachment with 3M tape on the backside of the strip
- Installation on an aluminum profile or any other heat-conducting surface
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter420
Lamp power per meter8.6 W
Luminous flux per meter820 lm
Luminaire efficacy95 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015F
Rated lifetime L70/B50 at 25 °C56000 h
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Product codes
SAPCZY216
STK4246536
PLC4246536
GTIN/EAN6430080492886
Manufacturer part numberJPL-VNCOB8,6W10M-24V-4000K
Vendor material number4246536
Basic information
Package measurements (L x W x H)350 x 320 x 12 mm
Package volume1.344 l
Package weight0.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
