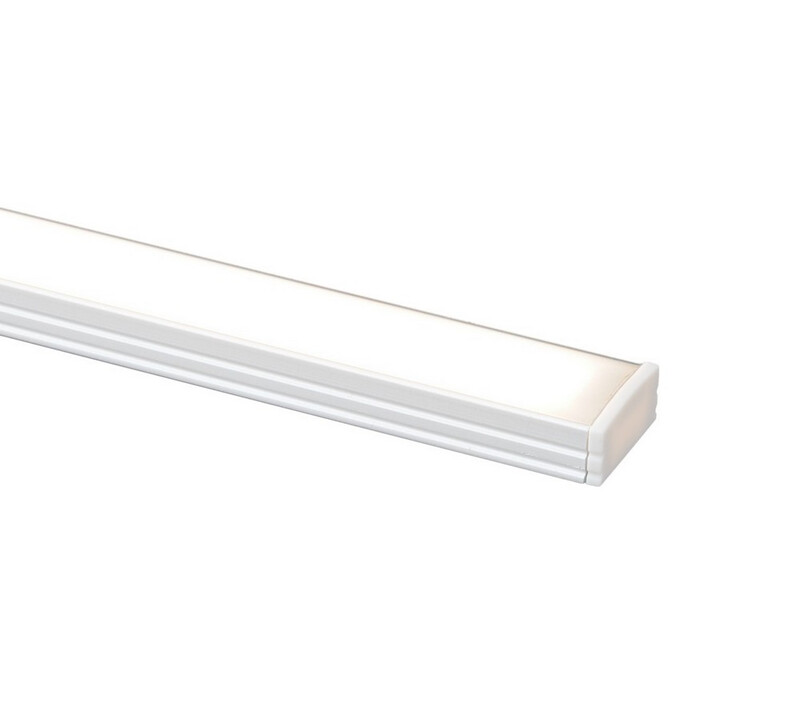

LED STRIP LINER 2,3M 14,4W/M 830LM/M 24V 3K WH
Product code
4291661
The liner must be dimmed and cut to a length of 2300 mm. Two-meter-long installation cables are pre-attached at both ends. Light output on the diffuser cover is 830 lumens/m (3000 K). Total light output for the entire strip is 1910 lumens (3000 K). Two light strips can be produced from one product without additional mounts or end caps. The delivery includes 5 screw mounts and 2 extra end caps.

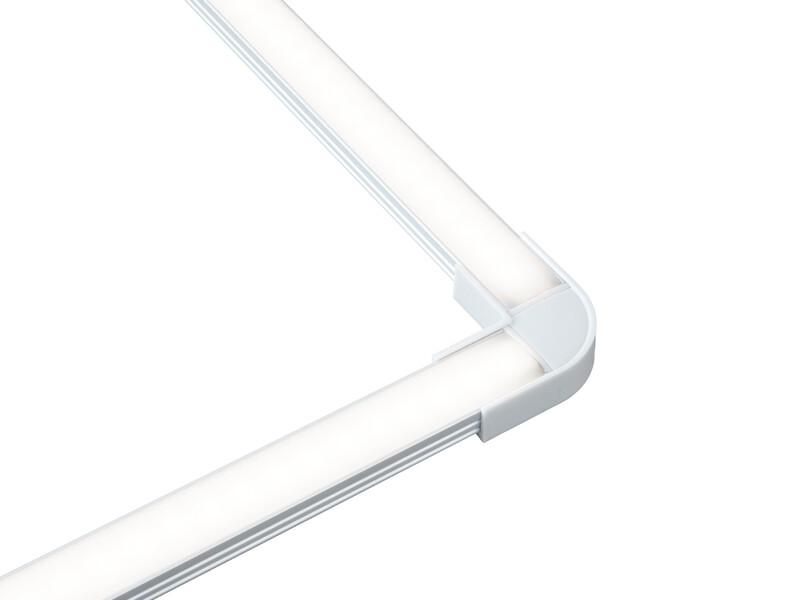

Additional accessories available: LINER feed cable 200 cm (electrical number 4291663) and LINER corner connector white (electrical number 4291665).
Technical specifications- length: 2.3 m
- light output: 830 lumens/m (3000 K)
- number of LEDs: 120 LED/m
- lifespan: L70B50 75000h at 45 °C
- IP21
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter140
Lamp power per meter14.4 W
Luminous flux per meter830 lm
Luminaire efficacy58 lm/W
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015G
Degree of protection (IP)IP21
Protection class according to IEC 61140III
Colour of lightWhite
Colour temperature3000 - 3000 K
Product codes
SAPDJB340
STK4291661
PLC4291661
GTIN/EAN6430080494156
Manufacturer part numberJPL-LN2300V-14,4W-3000K
Vendor material number4291661
Basic information
Package measurements (L x W x H)240 x 212 x 10 mm
Package volume0.509 l
Package weight0.203 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.639
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
