LED STRIP LINER 2,3M 14,4W/M 830LM/M 24V 3K
Product code
4291659
LINER 14.4W/m 3000K

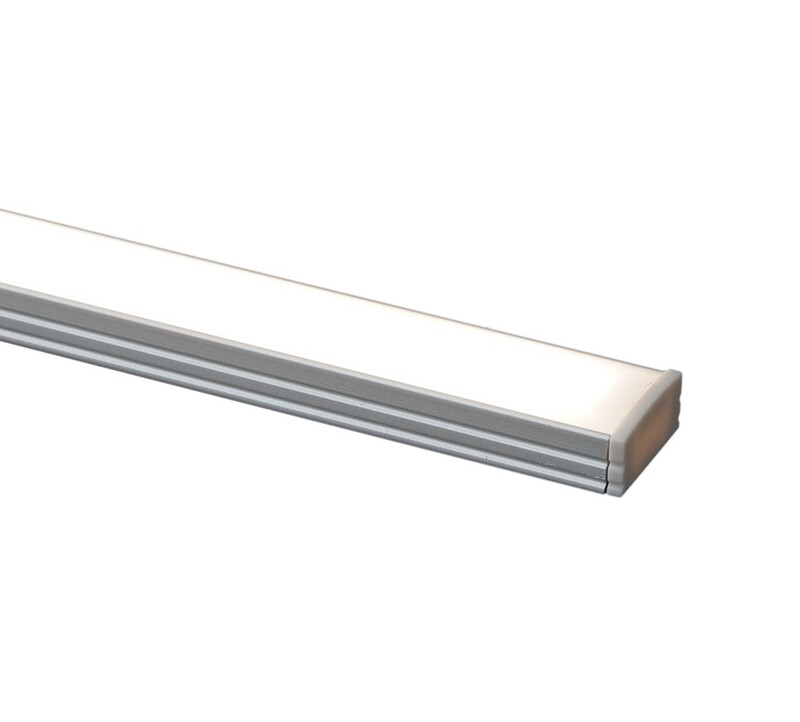

The liner is a dimmable, cut-to-length light strip 2300mm long. Both ends have two-meter-long installation cables pre-attached. Light output with diffuser cover is 830 lumens/m (3000K). Total light output for the entire strip is 1910 lumens (3000K). Two light strips can be made from one product without additional fittings or end caps. The delivery includes 5 screw fittings and 2 extra end caps.

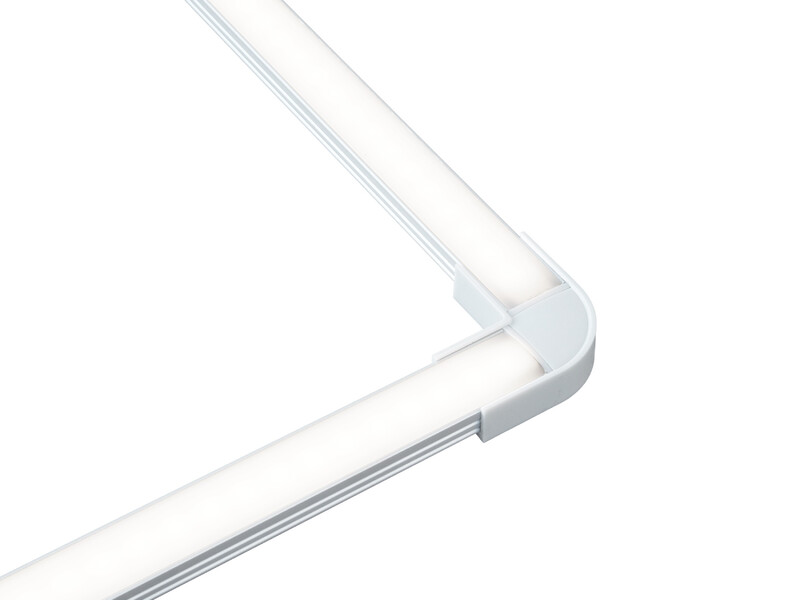

Additional accessories available: LINER supply cable 200cm (electrical number 4291663) and LINER corner connector (electrical number 4291664).
The liner is a dimmable, cut-to-length light strip 2300mm long. Both ends have two-meter-long installation cables pre-attached. Light output with diffuser cover is 830 lumens/m (3000K). Total light output for the entire strip is 1910 lumens (3000K). Two light strips can be made from one product without additional fittings or end caps. The delivery includes 5 screw fittings and 2 extra end caps.
Additional accessories available: LINER supply cable 200cm (electrical number 4291663) and LINER corner connector (electrical number 4291664).
- Length: 2.3m
- Light output: 830 lumens/m (3000K)
- Number of LEDs: 120 LED/m
- Service life: L70B50 75000h 45°C
- IP21
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter140
Lamp power per meter14.4 W
Luminous flux per meter830 lm
Luminaire efficacy58 lm/W
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015G
Degree of protection (IP)IP21
Protection class according to IEC 61140III
Colour of lightWhite
Colour temperature3000 - 3000 K
Product codes
SAPDJB338
STK4291659
PLC4291659
GTIN/EAN6430080494132
Manufacturer part numberJPL-LN2300-14,4W-3000K
Vendor material number4291659
Basic information
Package measurements (L x W x H)240 x 212 x 10 mm
Package volume0.509 l
Package weight0.203 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.639
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
