LED STRIP LINER 2,3M 14,4W/M 920LM/M 24V 4K WH
Product code
4291662
LINER 14.4W/m 4000K white

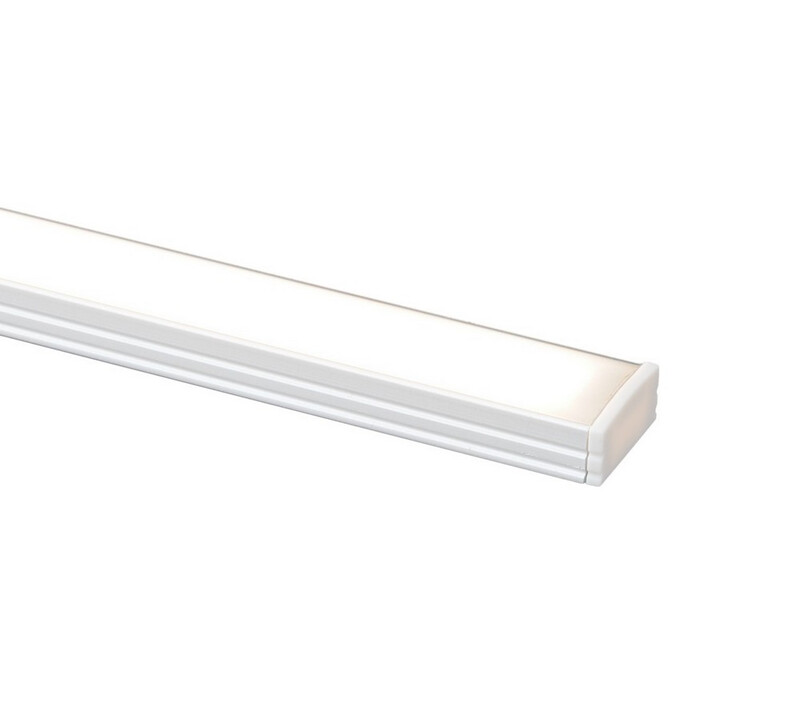

The liner is a dimmable, cut-to-length light strip 2300mm long. Both ends have two-meter-long installation cables pre-attached. Light output with diffuser cover is 920 lumens (4000K). Total light output for the entire strip is 2120 lumens (4000K). One product can be used to manufacture two light strips without additional fittings or end caps. The delivery includes 5 screw fittings and 2 extra end caps.

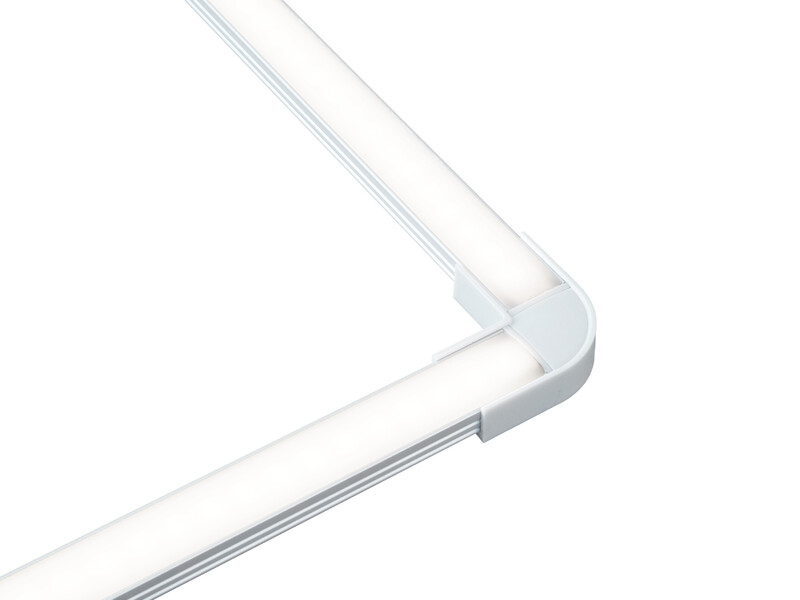

Additional accessories available: LINER supply cable 200cm (electrical number 4291663) and LINER corner connector (electrical number 4291664).
The liner is a dimmable, cut-to-length light strip 2300mm long. Both ends have two-meter-long installation cables pre-attached. Light output with diffuser cover is 920 lumens (4000K). Total light output for the entire strip is 2120 lumens (4000K). One product can be used to manufacture two light strips without additional fittings or end caps. The delivery includes 5 screw fittings and 2 extra end caps.
Additional accessories available: LINER supply cable 200cm (electrical number 4291663) and LINER corner connector (electrical number 4291664).
- Length: 2.3m
- Light output: 920 lumens/m (4000K)
- Number of LEDs: 120 LED/m
- Service life: L70B50 75000h 55°C
- IP21
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter140
Lamp power per meter14.4 W
Luminous flux per meter920 lm
Luminaire efficacy65 lm/W
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015G
Degree of protection (IP)IP21
Protection class according to IEC 61140III
Colour of lightWhite
Colour temperature4000 - 4000 K
Product codes
SAPDJB341
STK4291662
PLC4291662
GTIN/EAN6430080494163
Manufacturer part numberJPL-LN2300V-14,4W-4000K
Vendor material number4291662
Basic information
Package measurements (L x W x H)240 x 212 x 10 mm
Package volume0.509 l
Package weight0.203 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.639
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
