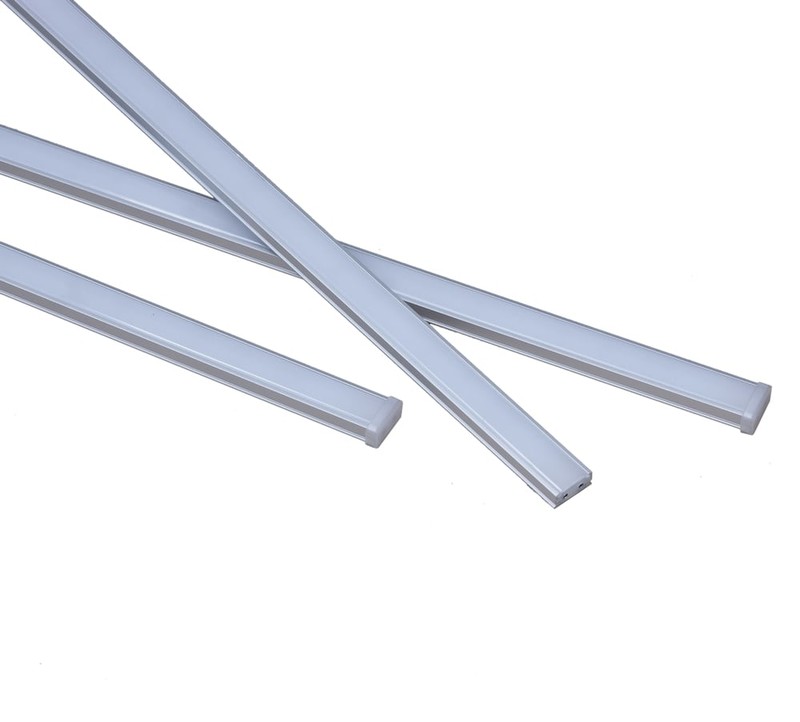

LED STRIP PROLINE 1000MM 15W LED-LIST 24V 3000K

Product code
4123224

24VDC LED light strips are luminaires connected via quick-connectors to create nearly uniform lighting. For example, kitchen worktop lighting can be easily achieved by connecting light strips of different lengths. Light strips can also illuminate corner kitchens using a 90° corner connector. Light strip lengths: 150 mm, 300 mm, 500 mm, 600 mm, 1000 mm, 1200 mm. Connectors: straight connector, 90° corner connector, 50 cm intermediate cable. Mounting options: clips (included with strips), magnetic mounting, 3M tape mounting, 45° mounting clips. Accessories for light strips: power end cap with 2500 mm cable, 1 m extension cable, 2-way splitter cable, 4-way splitter cable for light strips, IR switch for light strip end.

Features
  • operating voltage: 24 V
  • power (1000 mm): 15 W
  • light output (1000 mm): 920 lumens
  • width: 18 mm
  • height: 8 mm
  • protection class: IP44, connectors IP20
  • dimmable: yes, with dimmable power supply
  • service life: L70B10 56 000h Ta 25°C
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter126
Lamp power per meter15 W
Luminous flux per meter920 lm
Luminaire efficacy56 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle100 °
Type of control gearLED operating device voltage-controlled
Energy efficiency class of the light source according to EU regulation 2019/2015G
Degree of protection (IP)IP44
Protection class according to IEC 61140III
Colour of lightWhite
Colour temperature3000-3000 K

Product codes

SAPCSA187
STK4123224
PLC4123224
GTIN/EAN6430080490578
Manufacturer part numberJPL-VL1000-24V-3000K
Vendor material number4123224

Basic information

Package measurements (L x W x H)1045 x 22 x 12 mm
Package volume0.276 l
Package weight0.209 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandARTEN
VendorARTEN OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)2.717
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameArten Oy
Postal addressKipsitie 3 lt. 6, 90620 Oulu
