LED STRIP RECESSED PROFILE
Product code
4123293

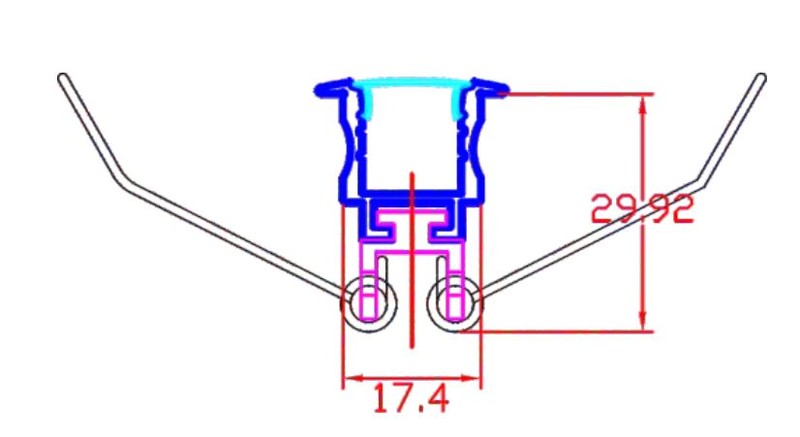

Embedded aluminum profile for LED strip installation. Snap-on cover, installed by pressing from above. The aluminum profile is 2000 mm long, total height including mounts is 30 mm, and width is 17.4 mm. Internal width is 12.4 mm.
Delivery includes one 2 m aluminum profile per unit:
- 4 spring clips
- 2 end caps with holes
- 2 end caps without holes This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
Mounting methodBuilt-in
Beam angle adjustableNo
Width17.4 mm
Height/depth29.9 mm
Total length2 m
With end pieceyes
With connection setyes
With protective coveryes
Self-adhesiveno
Product codes
SAPCSA238
STK4123293
PLC4123293
GTIN/EAN6430080491117
Manufacturer part numberJPL-AL5-2M
Vendor material number4123293
Basic information
Package measurements (L x W x H)2000 x 50 x 50 mm
Package volume5 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandARTEN
VendorARTEN OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.5
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
