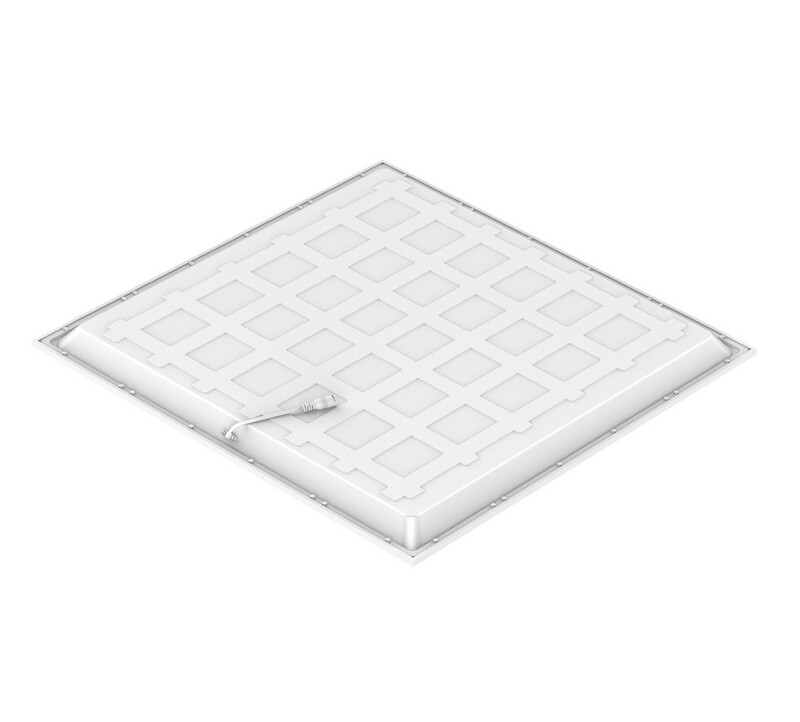

MODULAR LUMINAIRE ARIAL MULTI 16W-36W 4000K MP DALI CRI 90

The ARIAL modular luminaire is ideally suited for applications where it can be recessed into ceiling systems. Typical applications include offices, corridor and lobby areas, schools, and other public buildings. The glare-free model with micro-prismatic optics has a UGR value of <19, indicating glare protection, with values under 19 meeting office space requirements. This is a dry location (IP20) DALI-controlled model. Power is selectable between 16 W and 36 W. Light output ranges from 1760 to 3960 lumens. Luminous efficacy is 110 lm/W. In addition to the luminaire and power supply, the delivery includes a daisy-chainable connection box. Technical specifications

• light output: 1760-3960 lumens
• luminous efficacy: 110 lm/W
• dimensions: 595 mm * 595 mm
• height: 32 mm
• color temperature: 4000 K
• CRI>90
• control method: DALI
• lifespan: L80B10 100 000h Ta 45 °C
• MacAdam: 3 SDCM

Installation options

• recessed installation directly into modular ceiling
• recessed installation with recessed frame
• surface mounting with surface frame

This product description is an automated translation of the original Finnish description.
