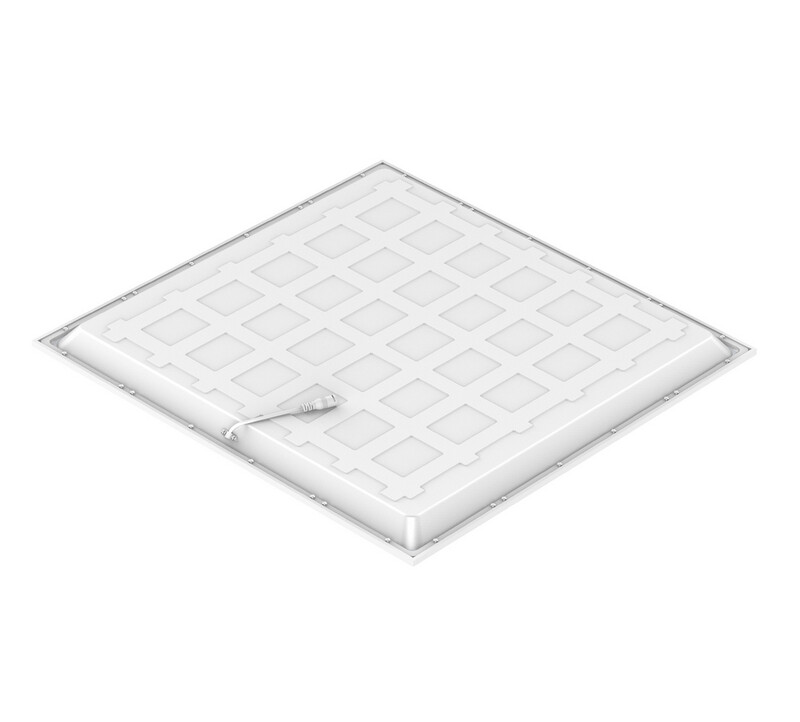

MODULAR LUMINAIRE ARIAL MULTI 16W-36W 4000K MP ON/OFF CRI 90

The ARIAL modular luminaire is ideally suited for applications where it can be recessed into ceiling systems. Typical applications include offices, corridor and lobby areas, schools, and other public buildings. The glare-free model with micro-prismatic lenses has a UGR value of <19, which indicates glare protection and meets office space requirements as values below 19 are acceptable. Color rendering index CRI>90. Dry location (IP20) ON/OFF model. Power is selectable between 16 W and 36 W. Light output ranges from 1760 to 3960 lumens. Luminous efficacy is 110 lm/W. In addition to the luminaire and power supply, the delivery includes a daisy-chainable connection box. Technical specifications

• light output: 1760-3960 lumens
• luminous efficacy: 110 lm/W
• size: 595 mm * 595 mm
• height: 32 mm
• color temperature: 4000 K
• CRI>90
• control method: ON/OFF
• service life: L80B10 100 000h Ta 45 °C
• MacAdam: 3 SDCM

Installation options

• recessed installation directly into modular ceiling
• recessed installation with recess frame
• surface mounting with surface frame
