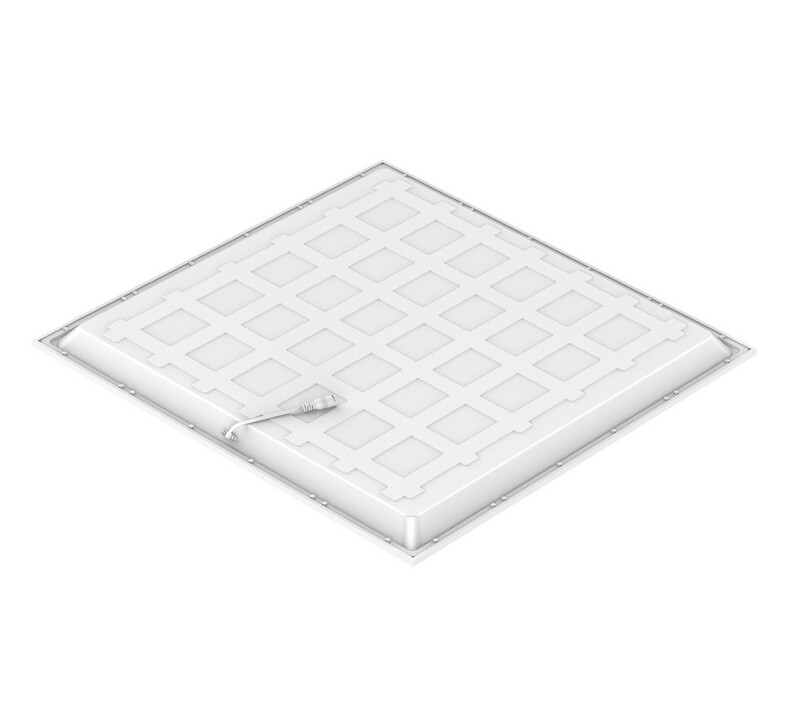

MODULAR LUMINAIRE ARIAL MULTI IP44 20-40W 3CCT CRI90 MP DALI

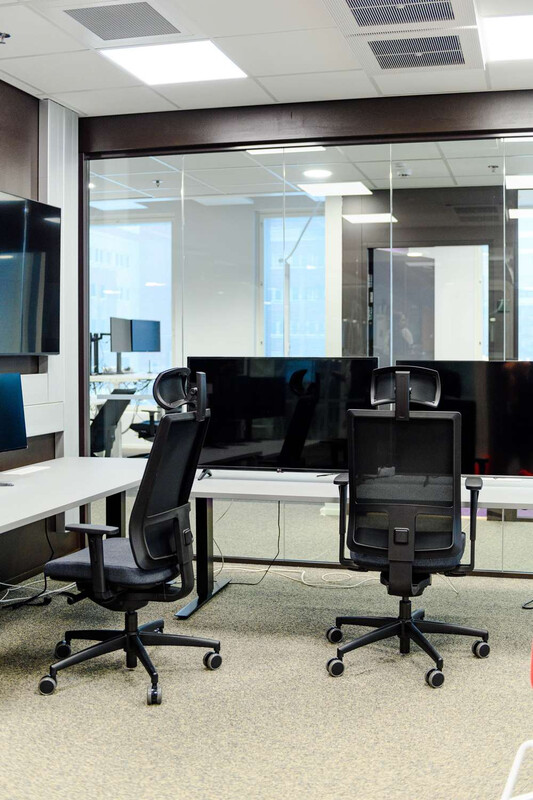

ARIAL Multi is a high-quality modular luminaire designed specifically for public spaces requiring efficient and visually pleasing general lighting. Typical applications include office work areas, classrooms, corridors, lobbies, administrative offices, and healthcare facilities, where lighting quality is paramount.
The luminaire’s micro-prism lens (UGR <19) prevents glare and meets office lighting requirements. The color temperature can be selected from three options—3000K, 4000K, or 5700K—via a DIP switch, enabling the lighting to be adapted to different purposes.
The luminaire offers adjustable power from 20 to 40 watts in 2W steps, with luminous flux ranging from 2500 to 5000 lumens. A luminous efficacy of 125 lm/W ensures an energy-efficient outcome. The color rendering index CRI 90 reveals colors of spaces and surfaces naturally, which is essential in learning environments, meeting rooms, and areas requiring visual precision. The IP44 rating makes the luminaire suitable for humid environments as well.
The included chainable connection box speeds up installation.
Features- Light output: 2500 - 5000 lumens
- Luminous efficacy: 125 lm/W
- Size: 595mm*595mm
- Height: 32mm
- Color temperature: 3000K/4000K/5700K, selectable via DIP switch
- Control method: DALI
- Service life: L80B10 100 000h Ta 45°C
- MacAdam: 3 SDCM
- Recessed installation directly into a modular ceiling
- Recessed installation with recessed frame
- Surface mounting with surface frame
