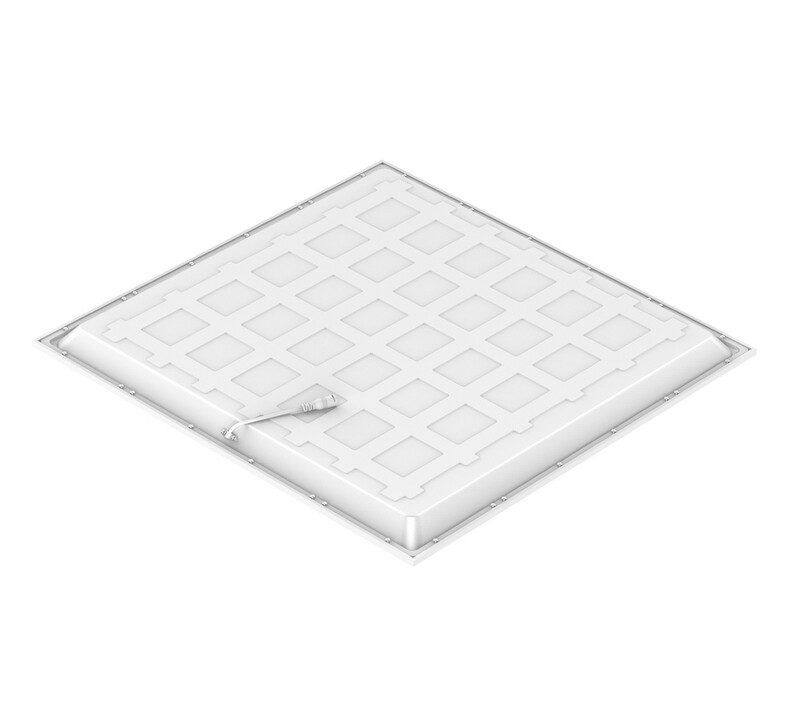

MODULAR LUMINAIRE ARIAL MULTI IP44 20W-40W 3CCT CRI90 MP

Product code
4135920
ARIAL Multi 125 3CCT CRI90 – Efficient and precise lighting for changing needs

ARIAL Multi is a high-quality modular luminaire designed specifically for public spaces requiring efficient and visually pleasing general lighting. Typical applications include office work areas, classrooms, corridors, lobbies, administrative offices, and healthcare facilities, where lighting quality is paramount.

The luminaire’s micro-prism lens (UGR <19) prevents glare and meets office lighting requirements. The color temperature can be selected via a DIP switch from three options – 3000K, 4000K, or 5700K – enabling the lighting to be adapted to different purposes.

The luminaire offers adjustable power from 20 to 40 watts in 2-watt steps, with luminous flux ranging from 2500 to 5000 lumens. A luminous efficacy of 125 lm/W ensures an energy-efficient result. The color rendering index CRI 90 renders colors of spaces and surfaces naturally, which is essential in learning environments, meeting rooms, and areas requiring visual precision. The IP44 rating makes the luminaire suitable for humid environments as well. The included chainable connection box speeds up installation.

Features
  • Light output: 2500-5000 lumens
  • Luminous efficacy: 125 lm/W
  • Size: 595mm*595mm
  • Height: 32mm
  • Color temperature selectable: 3000K, 4000K or 5700K
  • Control method: ON/OFF
  • Lifetime: L80B10 100 000h Ta 45°C
  • MacAdam: 3 SDCM
Installation options
  • Recessed mounting directly into a modular ceiling
  • Recessed mounting with recessed frame
  • Surface mounting with surface frame
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationyes
Suitable for clamp-mountingyes
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Housing materialSteel
Surface protection housingPowder coating
Housing colourWhite
Material coverPlastic, structured
Voltage typeAC/DC

Product codes

SAPDMW627
STK4135920
PLC4135920
GTIN/EAN6430080495108
Manufacturer part numberJPL-MO6060-MLT125-MP90-3CCT
Vendor material number4135920

Basic information

Package measurements (L x W x H)630 x 630 x 35 mm
Package volume13.892 l
Package weight1 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandARTEN
VendorARTEN OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)13.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameArten Oy
Postal addressKipsitie 3 lt. 6, 90620 Oulu
