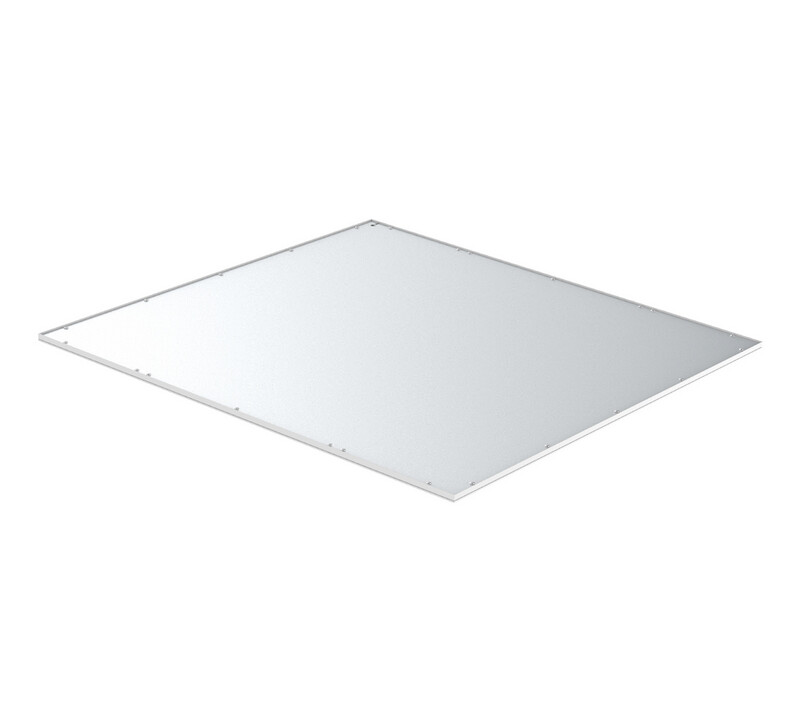

MODULAR LUMINAIRE VISION 20-40W 3CCT MP ON/OFF

VISION Multi 3CCT – Low-profile solution for confined installation spaces

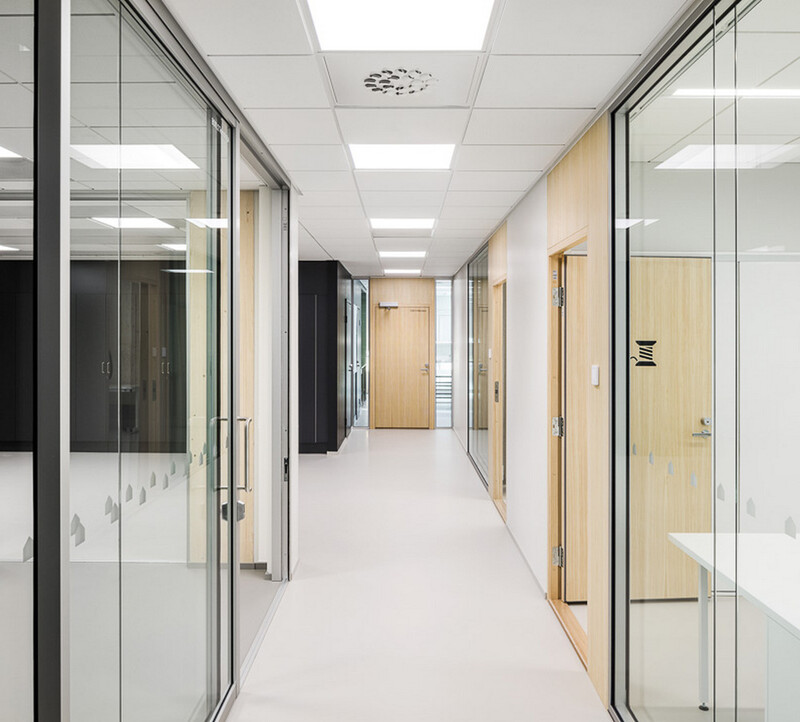

VISION Multi is a low-profile modular light fixture whose only 8 mm high housing makes it an excellent choice for applications with limited installation space. The fixture is suitable for offices, corridors, lobbies, educational institutions, and other public buildings.

The fixture’s micro-prism lens (UGR <19) prevents glare and meets office lighting requirements. Color temperature is selectable via DIP switch among three options – 3000K, 4000K, or 5700K – enabling the lighting to be adapted to different usage scenarios.

Power is selectable from 20 watts to 40 watts, making the fixture a flexible solution for various room sizes and lighting needs. Luminous efficacy is 110 lm/W with luminous flux ranging from 2200 to 4400 lumens. A color rendering index of CRI 80 ensures natural color reproduction in general lighting. IP20 protection is suitable for dry indoor environments. The included daisy-chainable connection box speeds up installation.

Features

• Light output: 2200-4400 (4000K)
• Size: 595mm*595mm
• Height: 8mm
• Color temperature: 3000K/4000K/5700K, selectable via DIP switch
• Control method: ON/OFF
• Lifespan: L80B10 56 000h Ta 45°C
• MacAdam: 3 SDCM

Installation options

• Recessed installation directly into modular ceiling
• Recessed installation with recessed frame
• Surface mounting with surface frame

This product description is an automated translation of the original Finnish description.
