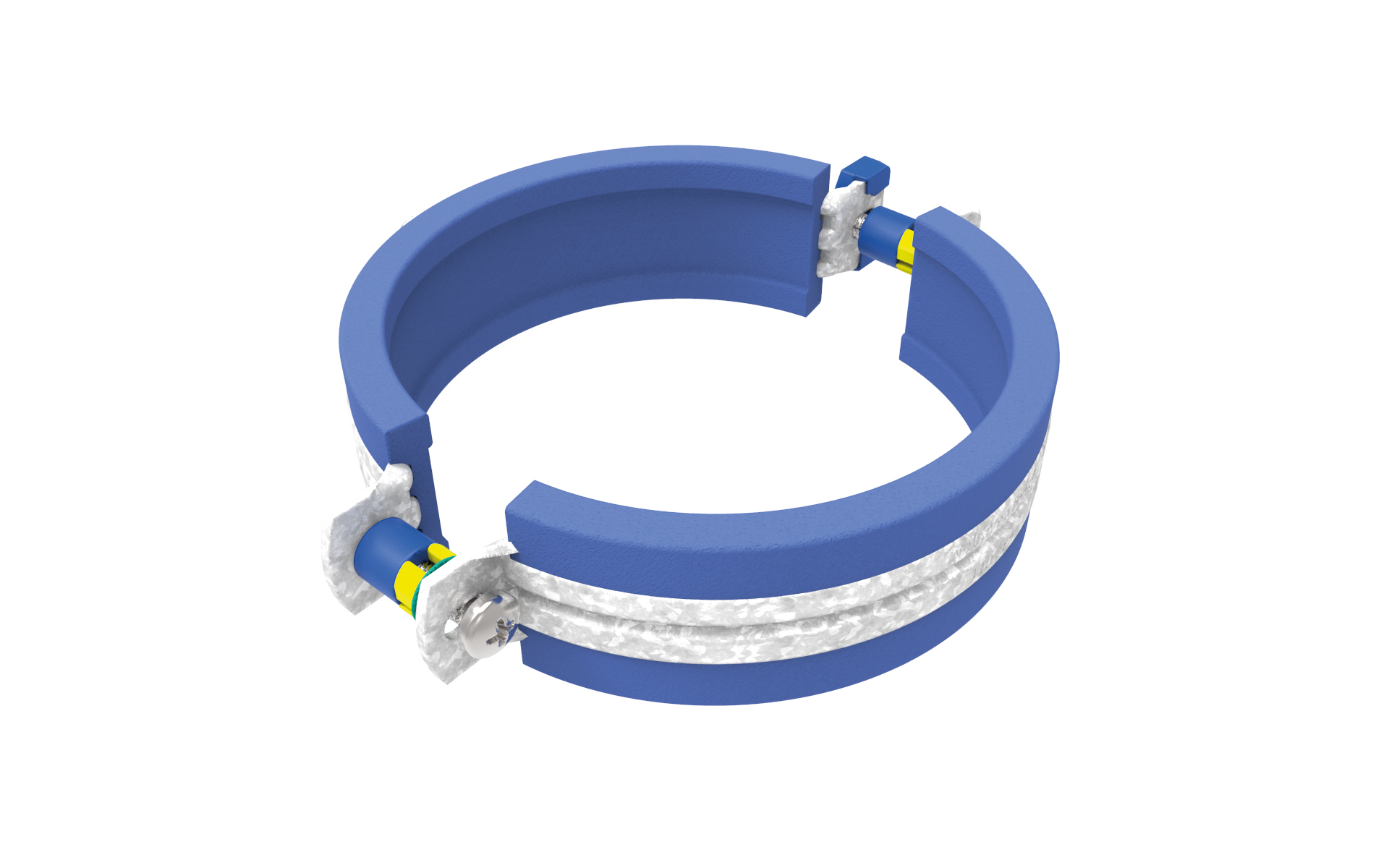

WAVIN LOW NOISE BRAC KET BL 110 M8/M10
Product code
2407194
Wavin AS+ is an advanced acoustic drainage system. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Two-part bracket round (EC010049)
MaterialSteel
Material qualitySt 37 (1.0254)
Surface treatmentUntreated
Surface protectionHot-dip galvanised
Layer thickness surface protection12 µm
Nominal diameterOther
Outer pipe diameter110 - 110 mm
InlayRubber
Inlay damping value0 dB(A)
Permitted work load1400 N
Connection facilityExternal thread
Connection size, connection facilityM8/M10
Lock facilityDouble screw
Suitable for number of pipes1
Width23 mm
Product codes
SAPCKF479
HPAC2407194
PLC2407194
GTIN/EAN8719942018524
Manufacturer part number4066452
Vendor material number4066452
Basic information
Package measurements (L x W x H)139 x 133 x 41 mm
Package volume0.758 l
Package weight0.314 kg
Base uniteach
Package units1 / 25 / 1125
Package contents–
UNSPSC40141914
BrandAS+
VendorWAVIN FINLAND OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)1
RecyclableYes
Manufacturer
NameWavin Finland Oy
Postal addressVisiokatu 1, 33720 Tampere
