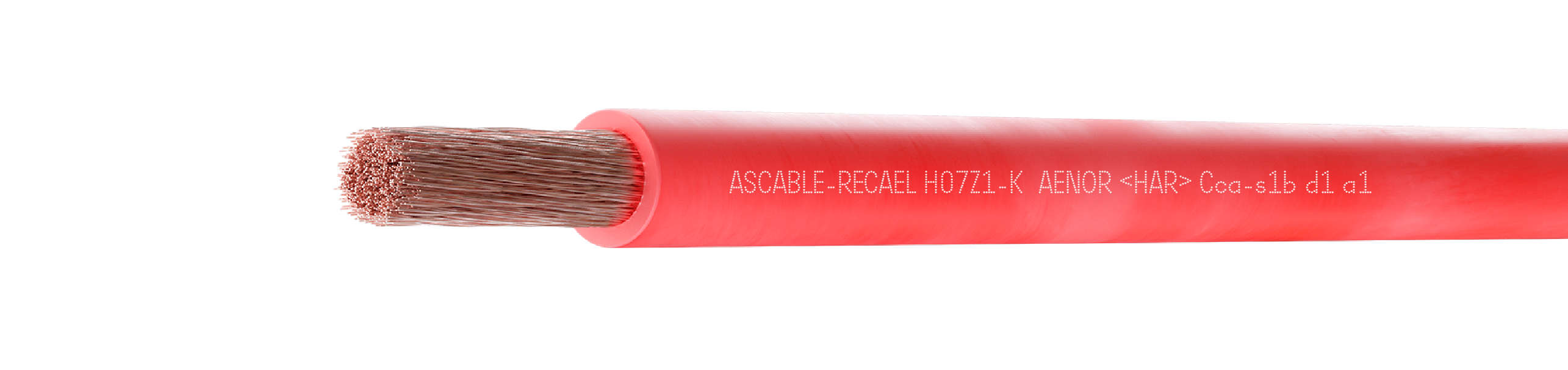

INSTALLATION LEAD-HF H07Z1-K 16 RED D500 Cca
Product code
9231157
KEM-HF 70 °C is harmonized (H07Z1-K, Type 2), fine stranded (class 5) conductor intended for fixed installation in conduit. It is also suitable for internal wiring of devices and equipment.
Features- halogen-free
- manufactured in accordance with standard EN 50525-3-31
- operating temperature -15 to +70 °C
- rated voltage U0/U = 450/750 V
- CPR approved, class Cca-s1b-d1-a1, DoP no: CPR 272017-00
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Nominal cross section conductor16 mm²
Conductor categoryClass 5 = flexible
Core identificationColour
Core colourRed
Screenno
Lead sheathno
Armouring/reinforcementNone
Material outer sheathPolyolefin
Reaction-to-fire according to EN 13501-6: ClassCca
Reaction-to-fire according to EN 13501-6: Smoke productions1b
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesd1
Reaction-to-fire according to EN 13501-6: Aciditya1
Outer diameter approximate7.1 mm
Nominal voltage U0450 V
Product codes
SAPDHW279
STK9231157
PLC9231157
GTIN/EAN8429569383539
Manufacturer part number336020009450
Vendor material number336020009450
Basic information
Package measurements (L x W x H)1000 x 7.1 x 7.1 mm
Package volume0.05 l
Package weight0.158 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121524
BrandASCABLE
VendorASCABLE-RECAEL S.A.
