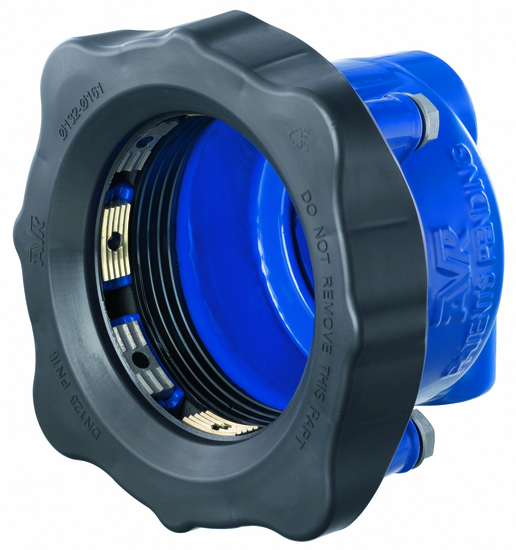

END CAP SUPA MAXI 193-227MM X G50 PN16

Product code
1965453
AVK's Supa Maxi™ range sets a new standard for tensile-resistant couplings. The patented Supa Maxi™ seal support system, combined with the coupling's unique design, ensures optimal sealing and tensile resistance on all pipe materials. The couplings are user-friendly and easy to install. Features include +/-4 degree angular misalignment, protective plug, lifting hook, center tightening, no need for re-tightening due to material and structure, and installation temperature down to -30 degrees Celsius. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 1 connection (EC003023)
Nominal diameter DNDN 200
Fitting typeOther
Working pressurePN 16
Multi tolerancetrue
Pull-out resistancetrue
Connection typeSocket outlet
For ground heat systemsfalse
Material connection 1Cast iron
Connection 1Compression ring
Max. operating pressure at 20 °C16 bar
Material sealingEthylene-propylene diene monomer rubber (EPDM)
Main colour fittingBlue
With sealing rings/gasketsyes

Product codes

SAPALQ996
HPAC1965453
PLC1965453
GTIN/EAN5706231850920
Manufacturer part number63422700036
Vendor material number63422700036

Basic information

Package measurements (L x W x H)390 x 390 x 210 mm
Package volume31.941 l
Package weight20.88 kg
Base uniteach
Package units1 / 6
Package contents
UNSPSC40141720
BrandAVK
VendorAVK FINLAND OY
