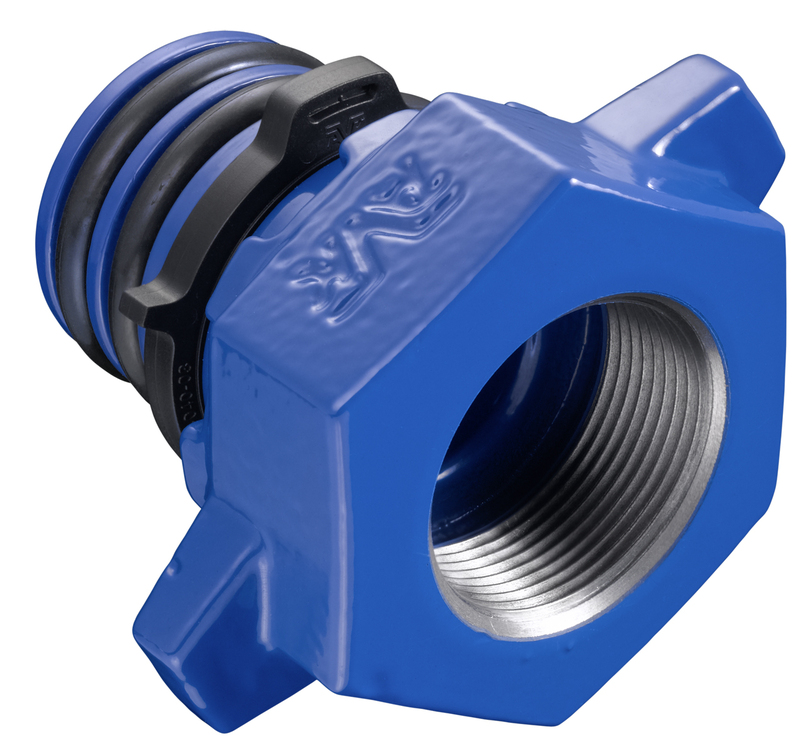

DRILLING TOOL AVK 32x1 1/2 SUPA LOCK
Product code
1949750
SUPA LOCK? - Threadless Connection Solution
Completely corrosion-free
The traditional saddle connection solution using threaded fittings is time-consuming and always leaves part of the thread uncoated. This area is immediately susceptible to corrosion and may cause leaks in the connection shortly after installation. SUPA LOCK? enables safe installation through an innovative locking solution.
An innovative connection system designed and tested for northern conditions ensures excellent protection against corrosion and leaks, significantly extending the service life of the connection compared to traditional threaded connections. The press-fit connection cannot be accidentally opened, ensuring safety is integrated into the design.
The product range includes a shut-off valve, saddles for plastic and cast iron pipes, and fittings. All cast iron components feature a GSK-standard coating that meets the most demanding industry requirements. Brass components are made of zinc-resistant brass and comply with industry standards and requirements for material and manufacturing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Working pressurePN 16
Pull-out resistancetrue
Material connection 1Cast iron
Material quality connection 1Cast iron EN-GJS-500-7 (GGG 50)
Material connection 2Cast iron
Material quality connection 2Cast iron EN-GJS-500-7 (GGG 50)
ShapeStraight
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Product codes
SAPCCW618
HPAC1949750
PLC1949750
GTIN/EAN5712206718096
Manufacturer part number1060040132464
Vendor material number1060040132464
Basic information
Package measurements (L x W x H)115 x 80 x 90 mm
Package volume0.828 l
Package weight1.165 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172608
BrandAVK
VendorAVK FINLAND OY
