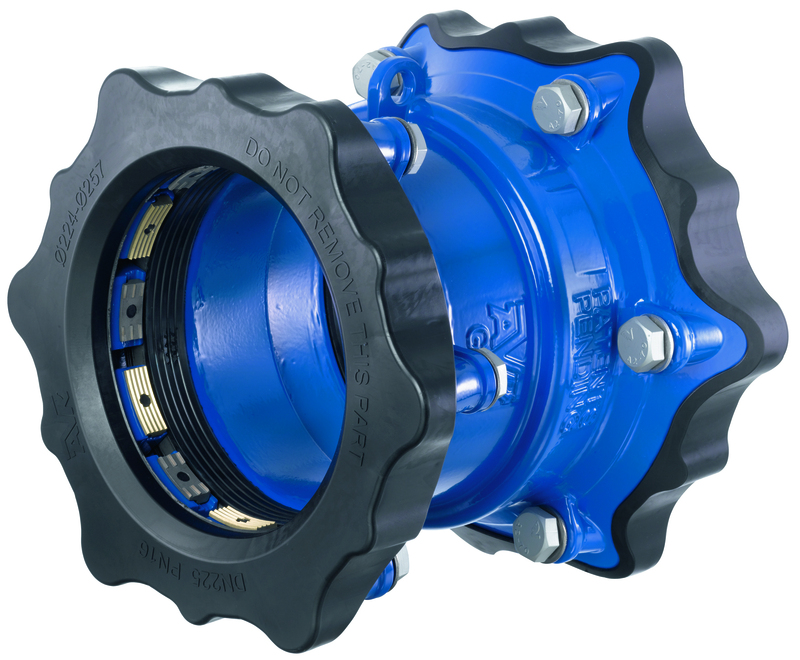

COUPLING SUPAMAXI 104-133X132-161MM PN16

Product code
1965432
AVK's Supa Maxi™ range sets a new standard for tensile-resistant couplings. The patented Supa Maxi™ seal support system, combined with the coupling's unique design, ensures optimal sealing and tensile resistance on all pipe materials. The couplings are user-friendly and easy to install. Features include +/-4 degree angular misalignment, protective plug, lifting hook, center tightening, no need for re-tightening due to material and structure, and installation temperature down to -30 degrees Celsius. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 2 connections (EC003024)
Nominal diameter DNDN 100
Fitting typeReducer joint
Working pressurePN 16
Multi tolerancetrue
Pull-out resistancetrue
Connection typeSocket outlet
For ground heat systemsfalse
Material connection 1Cast iron
Material connection 2Cast iron
ShapeStraight
Reducingyes
Nominal diameter connection 1DN 100
Nominal diameter connection 2DN 125
Main colour fittingBlue
Material sealingEthylene-propylene diene monomer rubber (EPDM)

Product codes

SAPALR015
HPAC1965432
PLC1965432
GTIN/EAN5706231830656
Manufacturer part number632133161006
Vendor material number632133161006

Basic information

Package measurements (L x W x H)285 x 285 x 310 mm
Package volume25.18 l
Package weight13.6 kg
Base uniteach
Package units1 / 12 / 10
Package contents
UNSPSC40141720
BrandAVK
VendorAVK FINLAND OY
