COUPLING SUPAMAXI 132-161MM X 159-188MM PN16
Product code
1965434

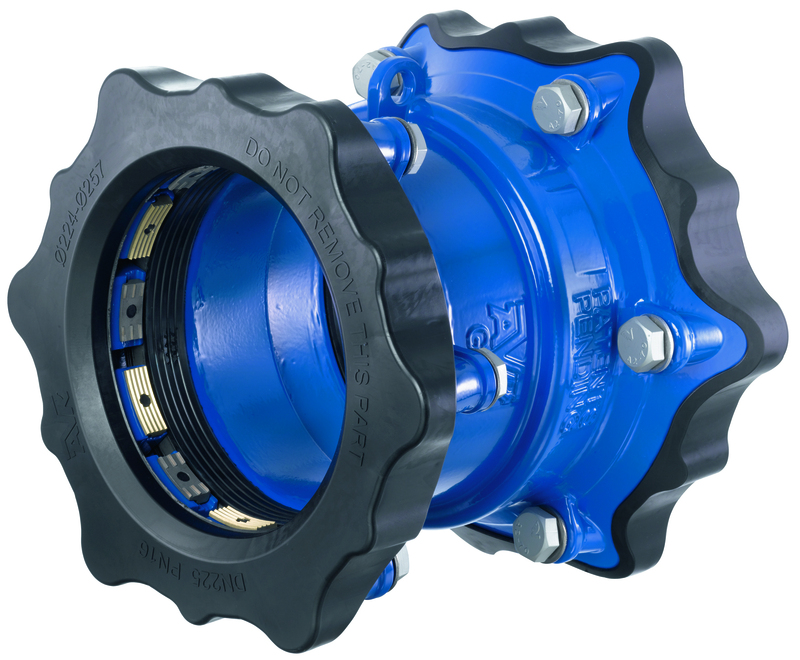

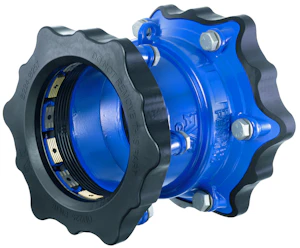

AVK's Supa Maxi™ range sets a new standard for tensile-resistant couplings. The patented Supa Maxi™ seal support system, combined with the coupling's unique design, ensures optimal sealing and tensile resistance on all pipe materials. The couplings are user-friendly and easy to install. Features include +/-4 degree angular misalignment, protective plug, lifting hook, center tightening, no need for re-tightening due to material and structure, and installation temperature down to -30 degrees Celsius. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Nominal diameter DNDN 125
Fitting typeReducer joint
Working pressurePN 16
Multi tolerancetrue
Pull-out resistancetrue
Connection typeSocket outlet
For ground heat systemsfalse
Material connection 1Cast iron
Material connection 2Cast iron
ShapeStraight
Reducingyes
Nominal diameter connection 1DN 125
Nominal diameter connection 2DN 150
Main colour fittingBlue
Material sealingEthylene-propylene diene monomer rubber (EPDM)
Product codes
SAPALR017
HPAC1965434
PLC1965434
GTIN/EAN5706231830670
Manufacturer part number632161188006
Vendor material number632161188006
Basic information
Package measurements (L x W x H)330 x 330 x 325 mm
Package volume35.393 l
Package weight17.3 kg
Base uniteach
Package units1 / 7 / 8
Package contents–
UNSPSC40141720
BrandAVK
VendorAVK FINLAND OY
